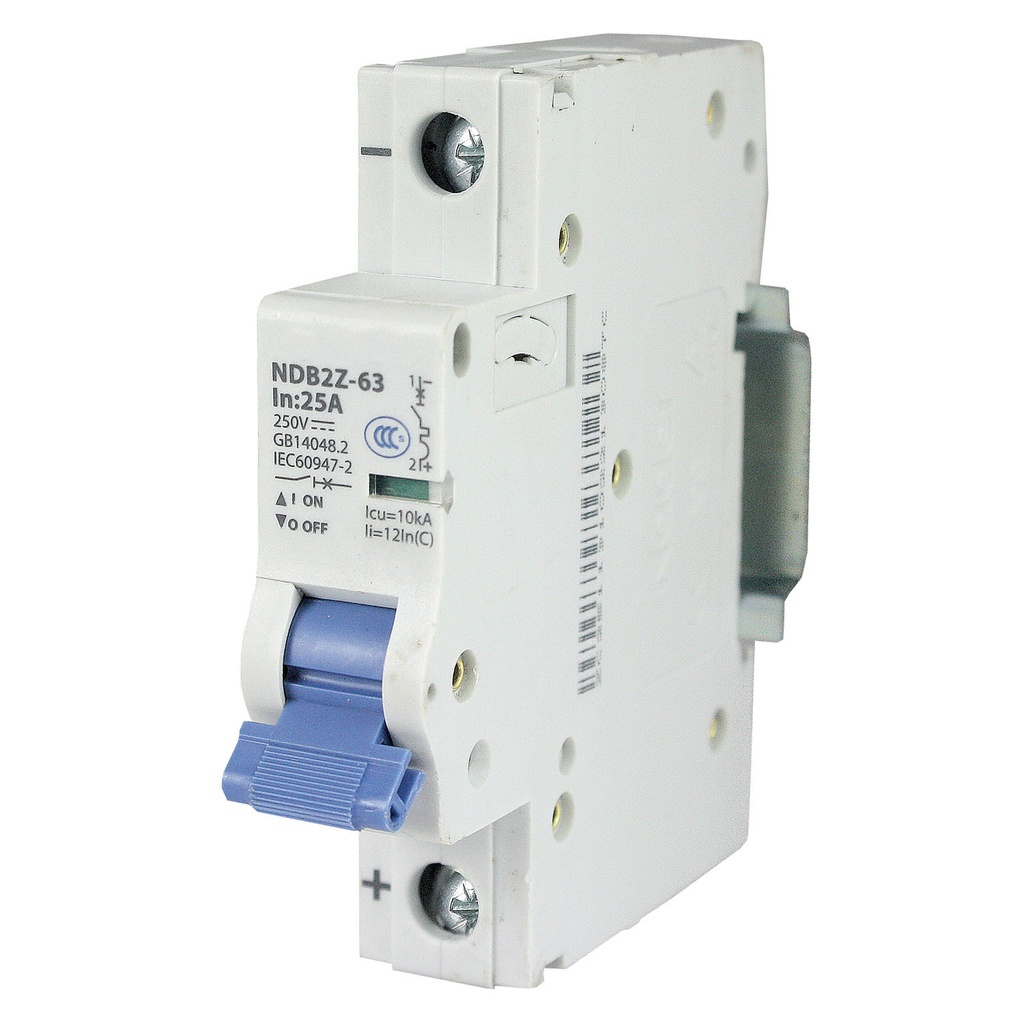

Mini Circuit Breaker | UL1077 Listed | 25A C Curve 230/240VAC 80VDC 10kAIC | DIN Rail Mount | Non Polarized | MCB Branch Circuit Protection | NDB2Z-63C25-1 (1 Pole, C Trip, 25 Amp)
SKU: NDB2Z-63C25-1
The ASI NDB2Z-63C25-1 DC rated MCB, DIN rail mount circuit breaker is UL1077 rated 25 amp at 125 Vdc with a C trip curve. It is a one pole DC DIN rail circuit breaker has visual indication and is a thermal magnetic mcb. This supplemental protection is meant for general purpose industrial applications. The NDB2Z DC DIN rail breaker circuit breaker is 18 mm wide, mounts on 35 mm DIN rail, has a flame-resistant housing, and shock proof connections with screw clamp wire terminations. This electric circuit breaker is RoHS compliant and is 300 % factory tested guaranteeing quality and reliability. The NDB2Z DC rated MCB series of circuit breakers is an ideal drop-in replacement to existing supplemental circuit breakers.
Call for Availability
Specifications
| Circuit Breakers | |
|---|---|
| Trip Curve | C Trip Curve (Medium) |
| Breaker Mounting | 35mm DIN Rail |
| Others | |
|---|---|
| Amperage | 25 Amps |
| Poles | 1 |
| UL | UL 1077 |
