2 Pole, 50A, 480V AC, 250V DC, Trip Curve: C, DIN Rail Mount-Miniature Circuit Breaker, 35mm Width, UL1077

https://www.sourceasi.com/web/image/product.template/1515/image_1920?unique=b21f98f
SKU: NDB2Z-63C50-2

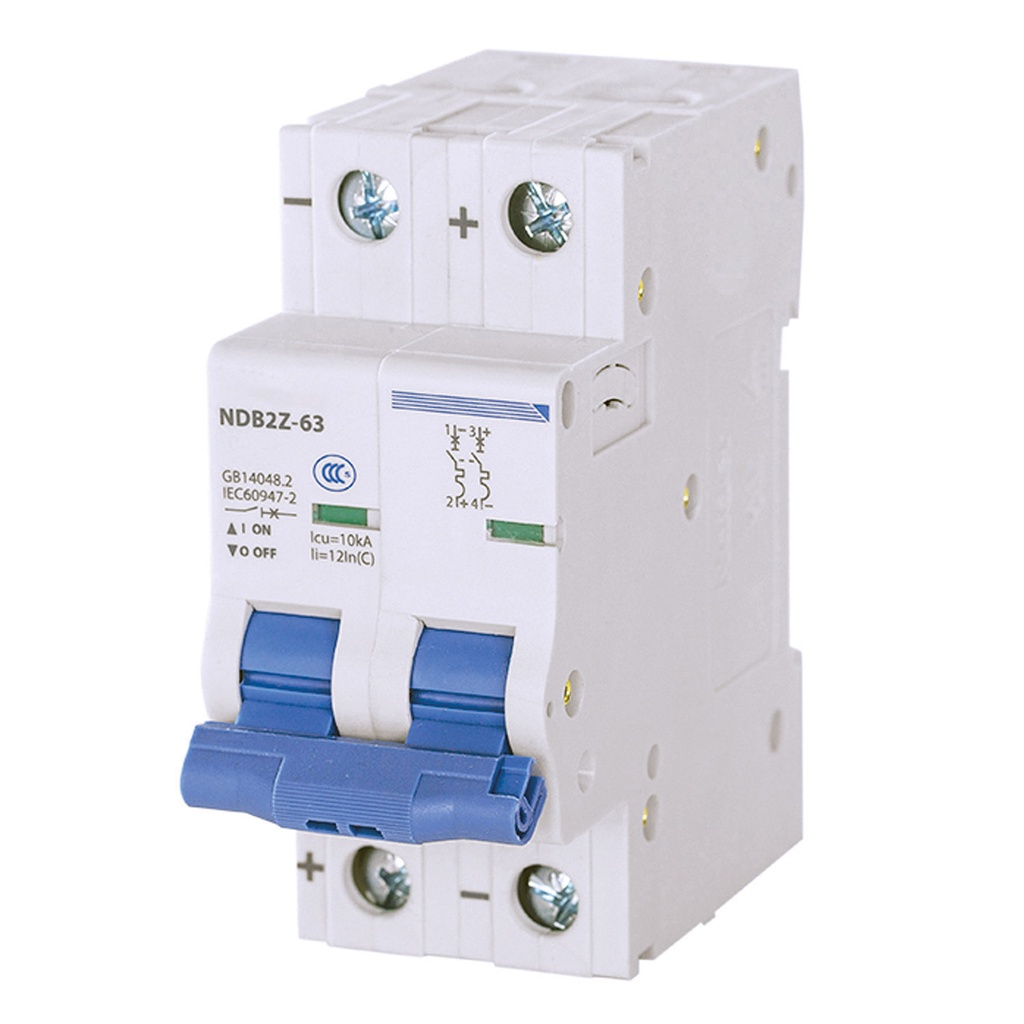

The ASI NDB2Z-63C50-2 DC rated MCB, DIN rail mount circuit breaker is UL1077 rated 50 amp at 250 Vdc with a C trip curve. It is a two pole DC DIN rail circuit breaker has visual indication and is a thermal magnetic mcb. This supplemental protection is meant for general purpose industrial applications. Each pole of The NDB2Z DC DIN rail breaker circuit breaker is 18 mm wide, mounts on 35 mm DIN rail, has a flame-resistant housing, and shock proof connections with screw clamp wire terminations. This electric circuit breaker is RoHS compliant and is 300 % factory tested guaranteeing quality and reliability. The NDB2Z DC rated MCB series of circuit breakers is an ideal drop-in replacement to existing supplemental circuit breakers.

In Stock (13)

34.13 34.13 USD 34.13

34.13

Not Available For Sale

/Each
  • Poles
  • Voltage
  • Amperage
  • Trip Curve
  • Mounting Style
  • Wire Range
  • Width
  • UL
  • Interrupting Capacity
  • Circuit Breaker Type
  • Circuit Breaker Type

This combination does not exist.


Specifications

Poles 2
Voltage 250V DC
Amperage 50 Amps
Trip Curve C Trip Curve
Mounting Style DIN Rail Mounted
Wire Range 16 - 4 AWG
Width 36 mm
UL UL 1077
Interrupting Capacity 10 kA
Circuit Breaker Type Thermal Magnetic, Miniature
