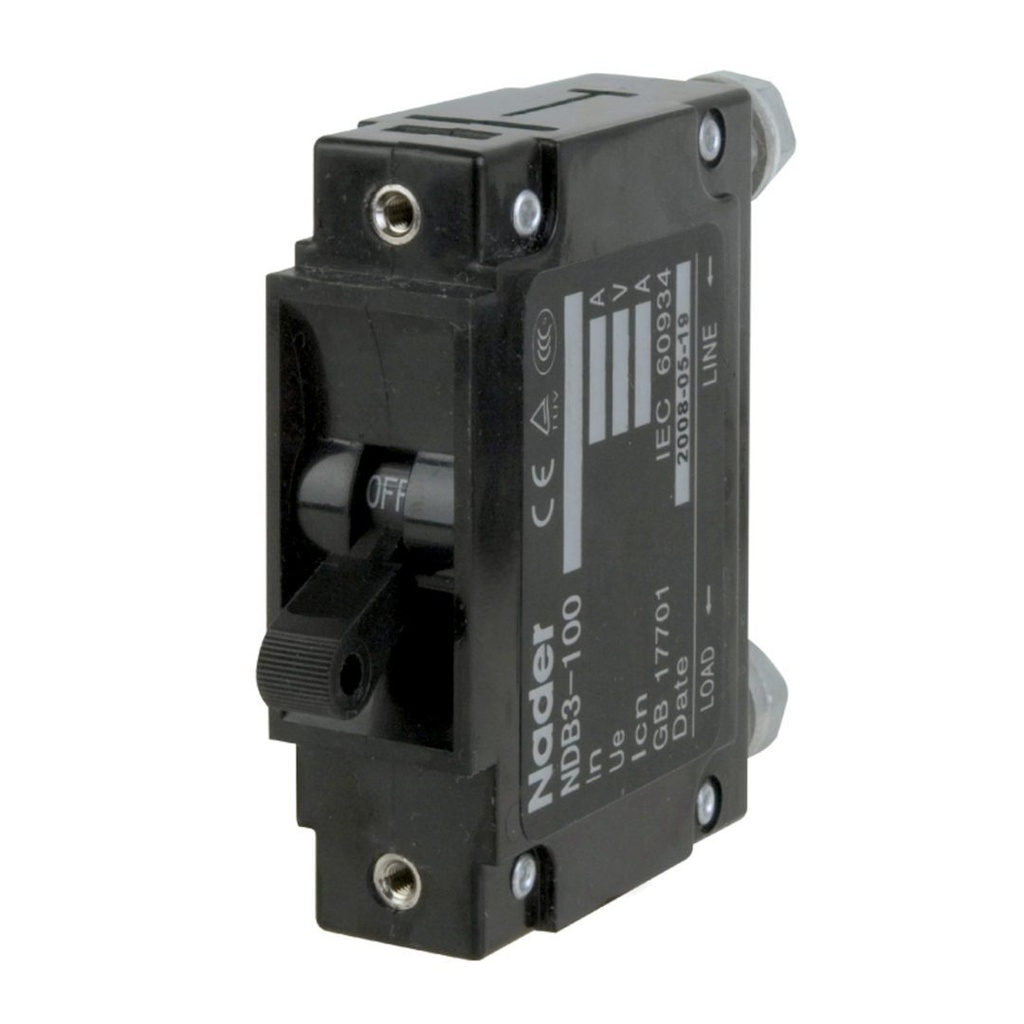

1 Pole, 20 Amp Panel Mount Circuit Breaker, Hydraulic Magnetic Circuit Breaker, UL489 Listed

https://www.sourceasi.com/web/image/product.template/1553/image_1920?unique=7346641
SKU: NDB3100J420-1LSS1A0K

1 Pole, 20 Amp Panel Mount Circuit Breaker, Hydraulic Magnetic Circuit Breaker, UL489 Listed, The ASI NDB3-100 Rack Mount, Panel Mount circuit breakers feature hydraulic magnetic operation, are available in 1-100 Amps and have a voltage rating of DC80V, AC230/400V with a 10kA and 5kA breaking capacity respectively.

21.17 21.17 USD 21.17

21.17

Not Available For Sale

/Each
  • Poles
  • Voltage
  • Voltage
  • Amperage
  • Trip Curve
  • Mounting Style
  • Interrupting Capacity
  • Interrupting Capacity

This combination does not exist.


Specifications

Poles 1
Voltage 80V DC, AC230/400V
Amperage 20 Amps
Trip Curve AC Medium
Mounting Style Panel Mount
Interrupting Capacity 5 kA, 10 kA
