SKU: NDB3100J450-1LSS1A0K

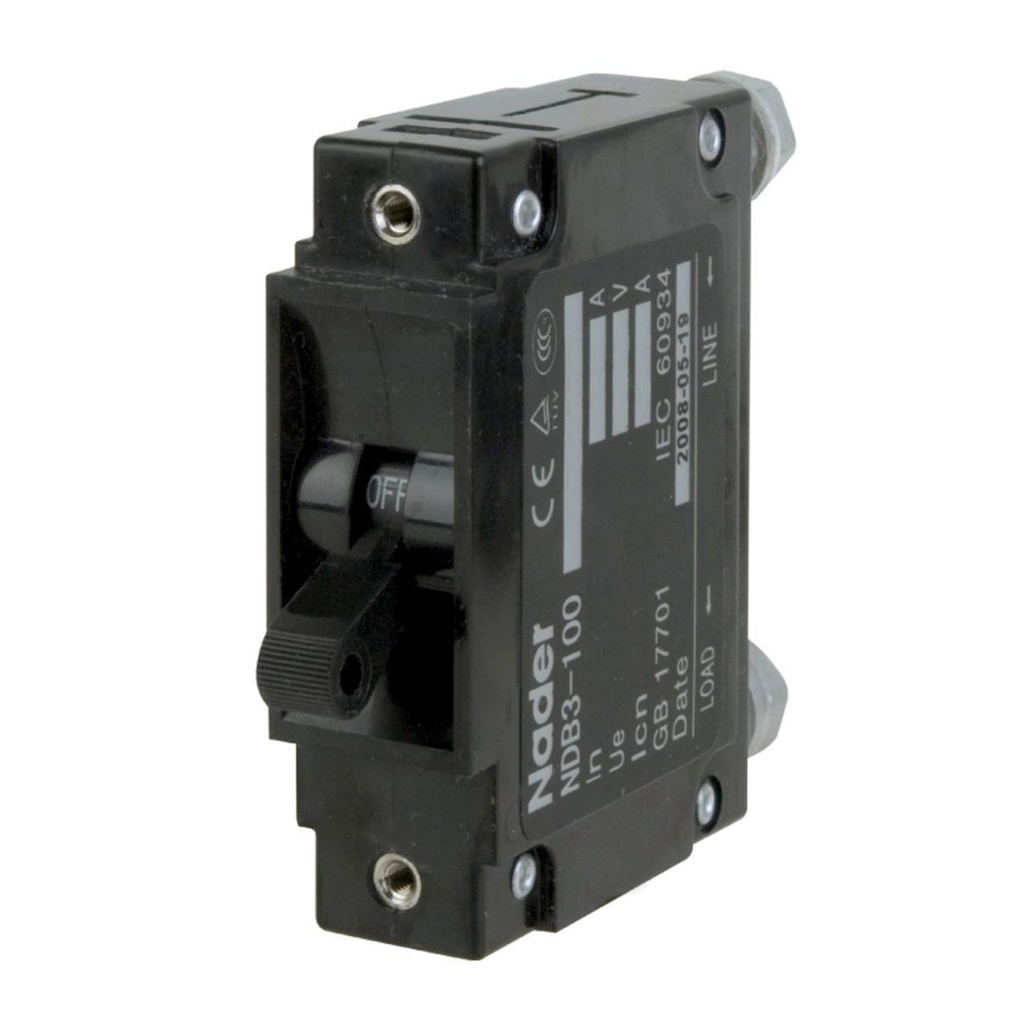

1 Pole, 50 Amp Panel Mount Circuit Breaker, Hydraulic Magnetic Circuit Breaker, UL489 Listed

https://www.sourceasi.com/web/image/product.template/1614/image_1920?unique=2eb8716
SKU: NDB3100J450-1LSS1A0K

1 Pole, 50 Amp Panel Mount Circuit Breaker, Hydraulic Magnetic Circuit Breaker, UL489 Listed. The ASI NDB3-100 Rack Mount, Panel Mount circuit breakers feature hydraulic magnetic operation, are available in 1-100 Amps and have a voltage rating of DC80V, AC230/400V with a 10kA and 5kA breaking capacity respectively.

19.76 19.76 USD 19.76

19.76

Not Available For Sale

/Each
  • Poles
  • Voltage
  • Amperage
  • Trip Curve
  • Mounting Style
  • Wire Connection / Termination Type
  • UL
  • Circuit Breaker Type

This combination does not exist.


Specifications

Poles 1
Voltage 250V AC
Amperage 50 Amps
Trip Curve AC Medium
Mounting Style Panel/Rack Screw Mount
Wire Connection / Termination Type Stud
UL UL 489
Circuit Breaker Type Hydraulic - Magnetic
