16 Amp, 1 Pole, 80V DC, Trip Curve: C, DIN Rail Mount-Hydraulic-Magnetic Circuit Breaker, UL1077
SKU: NDB5-Z416-1P

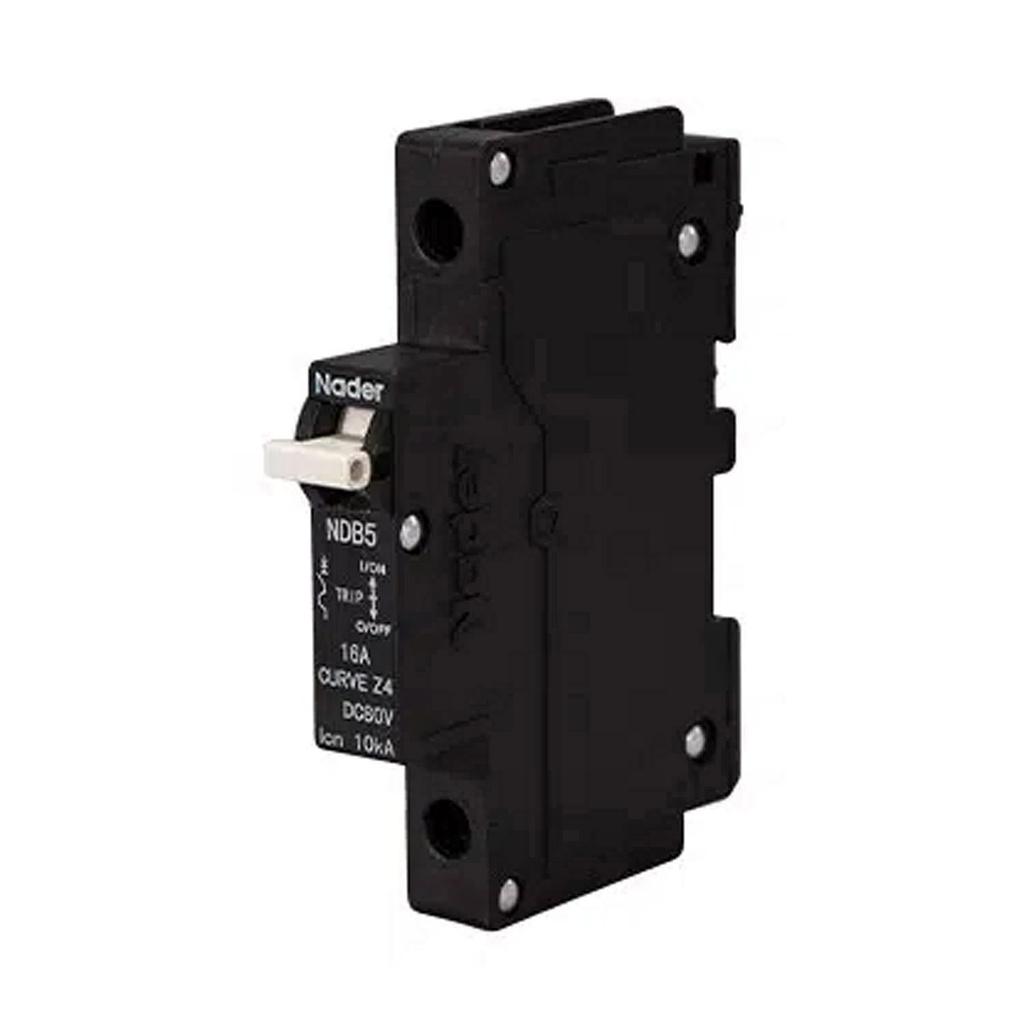

The ASI NDB5-Z416-1P is a one pole 16 amp DC circuit breaker that mounts on a DIN rail and is rated at 80 Vdc. This DC mcb mini circuit breaker is used in general purpose industrial applications. The NDB5-Z DIN rail mount DC circuit breaker has a high 10kA interrupt capacity and medium trip curve. The NDB5-Z is a space saving DIN rail DC breaker as it measures only 13mm wide per pole and it has touch safe screw clamp wiring, and a black flame-resistant housing. This one pole high-density din rail dc circuit breaker is 300% factory tested guaranteeing quality and reliability. This 16 amp, 1 pole DIN rail DC circuit breaker is the ideal choice for when space is at a premium in your panel.
Call for Availability
Specifications
| Amperage | 16 Amps |
| Poles | 1 |
| Trip Curve | C Trip Curve (Medium) |
| Breaker Voltage | 80V DC |
| Breaker Mounting | 35mm DIN Rail |
