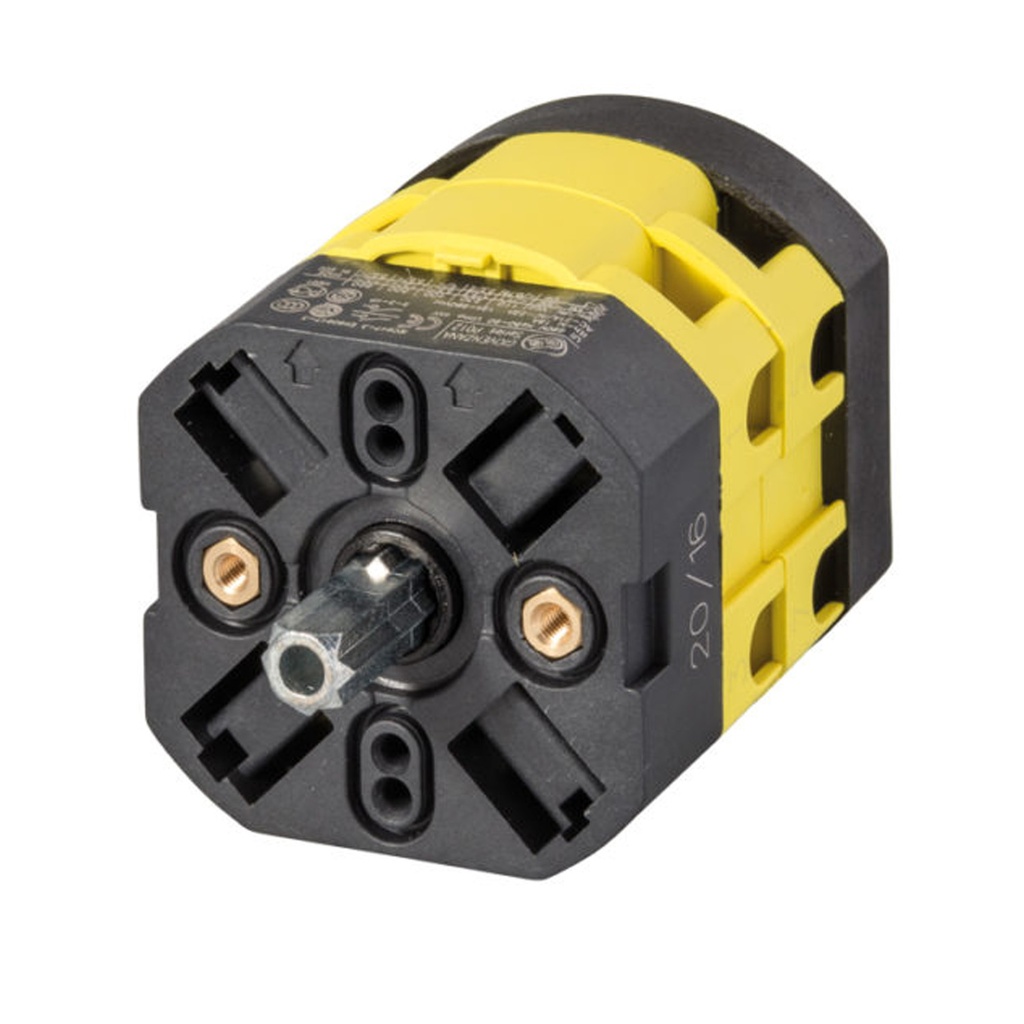

16Amp Rotary Cam Switch, 2 Position, On-Off, 3 Pole, 16A, 600V AC

https://www.sourceasi.com/web/image/product.template/24132/image_1920?unique=8ab494a
SKU: P0160003R

The ASI P0160003R is a rear panel mounted 2 position, ON-OFF, 3 pole rotary cam switch, load break switch. It can be used as a motor rotary cam on off switch with three phase motors up to 3 horsepower at 208Vac and up to 7.5 horsepower at 480Vac. The ASI P0160003R, 2 position, 3 pole rotary cam switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 general use rating of 16A at 600Vac, the P0160003R cam switch or load break switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust rotary 2 position, on off switch is ideal for control and load switching applications in all types of industrial applications. A wide range of NEMA 4X handles and operators are available for the rotary cam switch including a lockable handle capable of accepting padlocks. Custom configurations of rotary cam switches are available upon request.

In Stock (11)

23.71 23.71 USD 23.71

23.71

Not Available For Sale

/Each
  • Amperage

This combination does not exist.

Addtional Resources:


Specifications

Amperage 16 Amps
