Motor Reversing Switch for Centrifugal Switch Single Phase Motor Up To 2HP
SKU: P0200016R

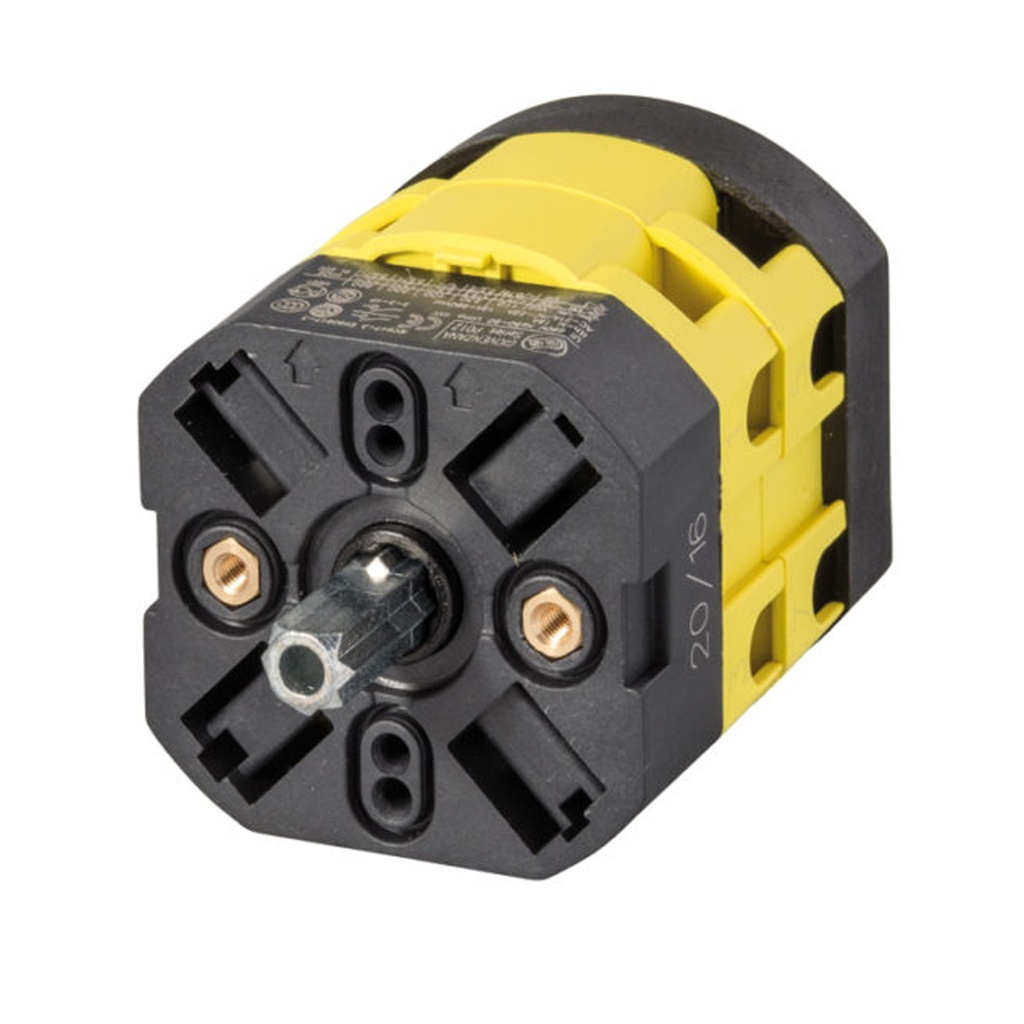

The ASI P0200016R is a rear panel mounted motor reversing switch or reversing drum switch for single phase motors with centrifugal switch up to 2 horsepower. This reversing drum switch can be used with 120vac and 240vac 1 phase motors with centrifugal switch. This single phase motor reversing switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With UL508 listing of 600 Vac, 20A this forward and reverse motor switch is ideal for single phase motors that have a centrifugal switch ranging from 1.5 HP to 2 HP based on voltage. The P0200016R single phase ac motor reversing switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust reversing drum switch is ideal for ac motor reversing in all types of industrial applications. The reversing drum switch wiring diagram can be found under the picture of the drum switch. A wide range of NEMA 4X handles and operators are available for the motor reversing switches including a lockable handle capable of accepting padlocks. Complete drum switch enclosures are available upon request which would include your exact size reversing motor switch mounted in a high impact thermoplastic enclosure and operating handle.

Call for Availability

39.33 39.33 USD 39.33


Not Available For Sale

  • Amperage

This combination does not exist.

Addtional Resources:


Amperage 20 Amps
