Motor Reversing Starter Switch With An Auxiliary Phase For Single Phase Electric Motors Up To 2HP
SKU: P0200018R

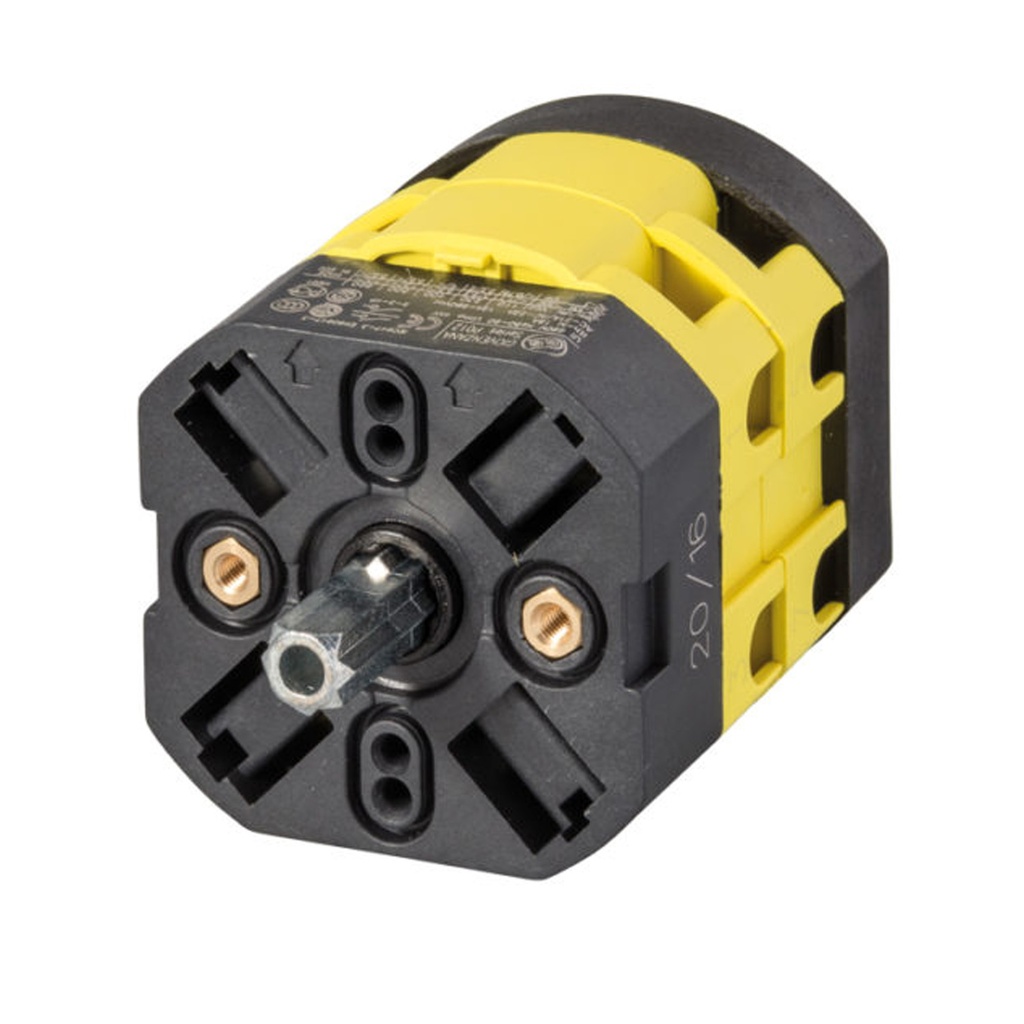

The ASI P0200018R is a rear panel mounted motor reversing switch or drum switch for single phase motors with an auxiliary phase for use with single phase motors up to 2 horsepower. The ASI P0200018R motor reversing starter switch can be used with 120vac and 240vac 1 phase motors with an auxiliary phase. This single phase motor reversing drum switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With UL508 listing of 600 Vac, 20A this single phase motor reversing starting switch is ideal for single phase motors that have an auxiliary phase ranging from 1.5 HP to 2 HP based on voltage. The P0200018R single phase ac motor reversing switch is a compact design to save space, the wire connections are shock hazard proof and information on wiring and identification are laser engraved into the housing. This robust motor reversing starter switch is ideal for ac motor starting and reversing in all types of industrial applications. Complete motor reversing starter switch enclosures or drum switches are available upon request which would include your exact size motor reversing starter switch mounted in a high impact thermoplastic enclosure and operating handle.

Call for Availability

40.86 40.86 USD 40.86


Not Available For Sale

  • Amperage

This combination does not exist.

Addtional Resources:


Amperage 20 Amps
