ASI P0202499S-RH-EKIT Boat Lift Switch | 120/240V AC, 20A, 2HP | Single-Phase Motor Reversing Switch | Top-Mounted Red Handle | Enclosure Kit | Maintained Operation

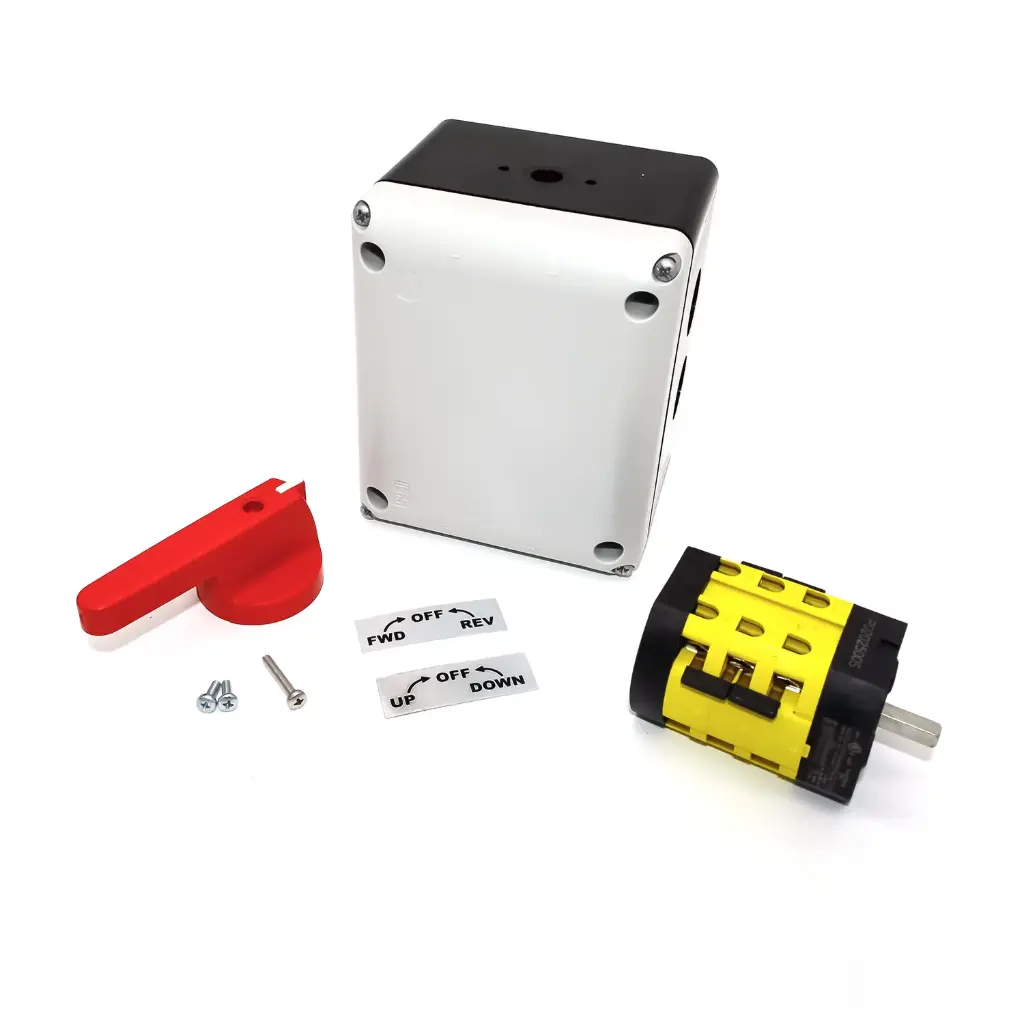

ASI P0202499S-RH-EKIT, an enclosed single-phase boat lift switch with a top-mounted red handle, IP65 enclosure, and clear FWD/REV and UP/DOWN labels. Specifically designed for boat lifts, this single-phase drum switch features two poles that securely lock into each operating position. This switch is maintained, meaning, the user will have to manually turn the switch to off or on position. This switch will not snap back to off if user lets go of handle.

Encased in a high-impact thermoplastic enclosure, this boat lift switch is suitable for use with 120 Vac or 240 AC motors. With a UL508 listing of 600V AC and 20A, it is an ideal choice for single-phase motors ranging from 1.5 HP to 2 HP based on voltage requirements. Part of a series of manual reversing motor switches, it includes self-cleaning contacts, silver alloy plating, and a UL94V0 thermoplastic housing.

Compact and space-saving, the ASI P0202499S-RH-EKIT ensures shock and hazard-proof wire connections. This robust reversing drum switch is perfect for AC boat lifts in various applications.
