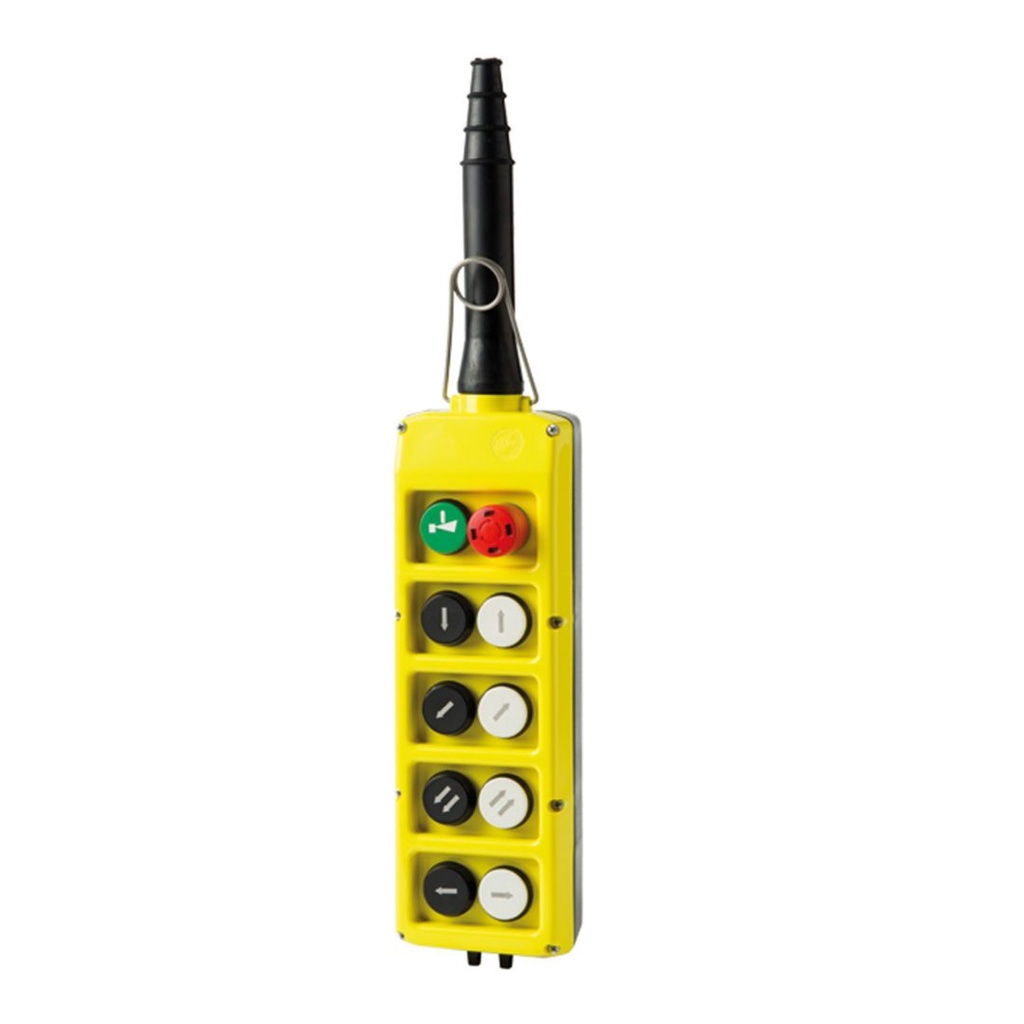

10 Button Crane Pendant, Double Row, 8 Bidirectional Push Buttons, 1 Alarm, 1 Emergency Stop Buttons


ASI PLB10-E is a double row 10 button pendant station for pendant controls of overhead cranes in applications that need an industrial 10 button pendant controller. The PLB10/E crane pendant is assembled with one twist to release emergency stop button with a NC contact, a green start button with 2 NO contacts, and single speed up-down push buttons, right-left and front-back up and down buttons and 2 speed directional buttons with NO contact blocks. The housing of this compact double row 10 push button crane pendant is made of a double insulated thermoplastic housing that is shock proof and heat resistant and offers IP65, NEMA4X rating. The housing of this 10 button pendant station is equipped with a cable strain relief to ensure that wiring to the 10 button pendant controller is secure during all operation. The laser engraved push button switches along with the double row push button switch mounting make for a user friendly pendant station. The contacts used in this 10 button crane pendant station are rated at 16A and screw clamp wire terminations for easy wiring.
