2 Position Key Selector Switch With Spring Return, 22mm Selector Switch With 45 Degree Key Turn, 2 Position Maintained

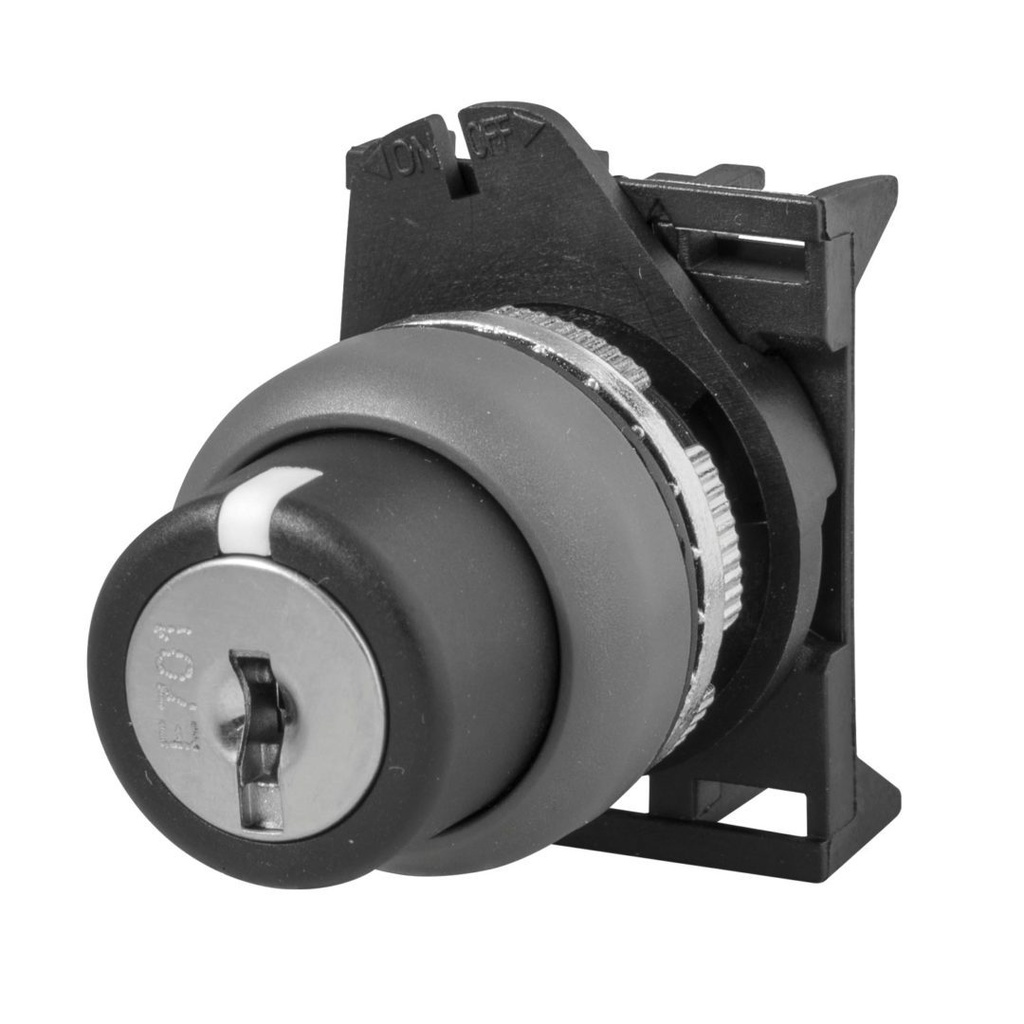

The PSCR8D2CGL is a 2 position key selector switch that is momentary with the key turning 45 degrees to the right with spring return and key removal in the center position. The PSCR8D2CGL is an industrial grade heavy duty 2 pole key selector switch with grey bezel that mounts through a 22mm hole. The PSCR8D2CGL 2 position selector switch with key, 45 degree turn, and spring return comes equipped with the mounting adapter capable of mounting 3 electrical contact blocks. An optional 5 element contact block is available separately. This 22mm selector switch with key and spring return meets ingress protections IP67 and IP69K making this waterproof key switch recognized for NEMA 4 and 4X applications. Other key operated selector switch models are available upon request. If your application calls for a key operated rotary selector switch control station ASI offers several standard models of control stations and can provide custom push button and keyed selector switch control stations upon request.

In Stock (2)

31.77 31.77 USD 31.77
