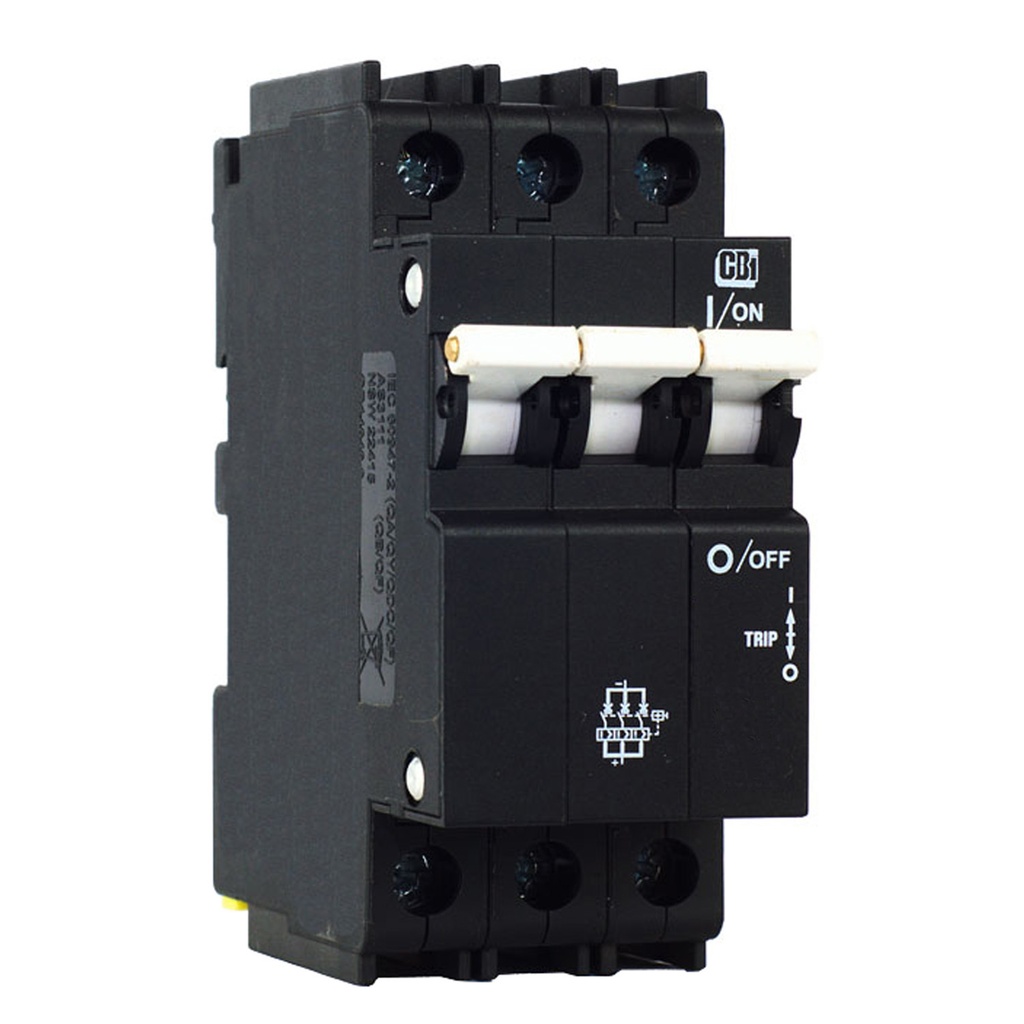

10 Amp DIN Rail Circuit Breaker, 240V AC, 3 Pole, Only 39 mm Wide, Hydraulic Magnetic, UL489 Listed

10 Amp DIN Rail Circuit Breaker, 240V AC, 3 Pole, Only 39 mm Wide, Hydraulic Magnetic, UL489 Listed

https://www.sourceasi.com/web/image/product.template/16733/image_1920?unique=7f68a0f
SKU: QL313DMKM10

ASI QL313DMKM10 is a UL489 Listed space saving DIN rail circuit breaker, 240 Vac, 10 Amp, 3 pole, Interrupt Capacity of 5kA, and medium trip curve which is suitable for most industrial applications. This DIN rail mount circuit breaker saves the user 25% DIN rail space compared to DIN rail mount circuit breakers. This MCB mini circuit breaker that DIN rail mounts features hydraulic magnetic operation for increased reliability.

In Stock (3)

$ 61.95 61.95 USD $ 61.95

Not Available For Sale

/Each
  • Trip Curve
  • Breaker Voltage
  • Breaker Mounting
  • Amperage
  • Poles

This combination does not exist.


Additional Resources:
Contact Us


Specifications

Circuit Breakers
Trip Curve C Trip Curve (Medium)
Breaker Voltage 240V AC
Breaker Mounting 35mm DIN Rail
Others
Amperage 10 Amps
Poles 3
