Panel Interface Connector With A Shielded RJ45 Connector, Enclosed Panel Feed Through RJ45 Connector, IP65 and NEMA 4X

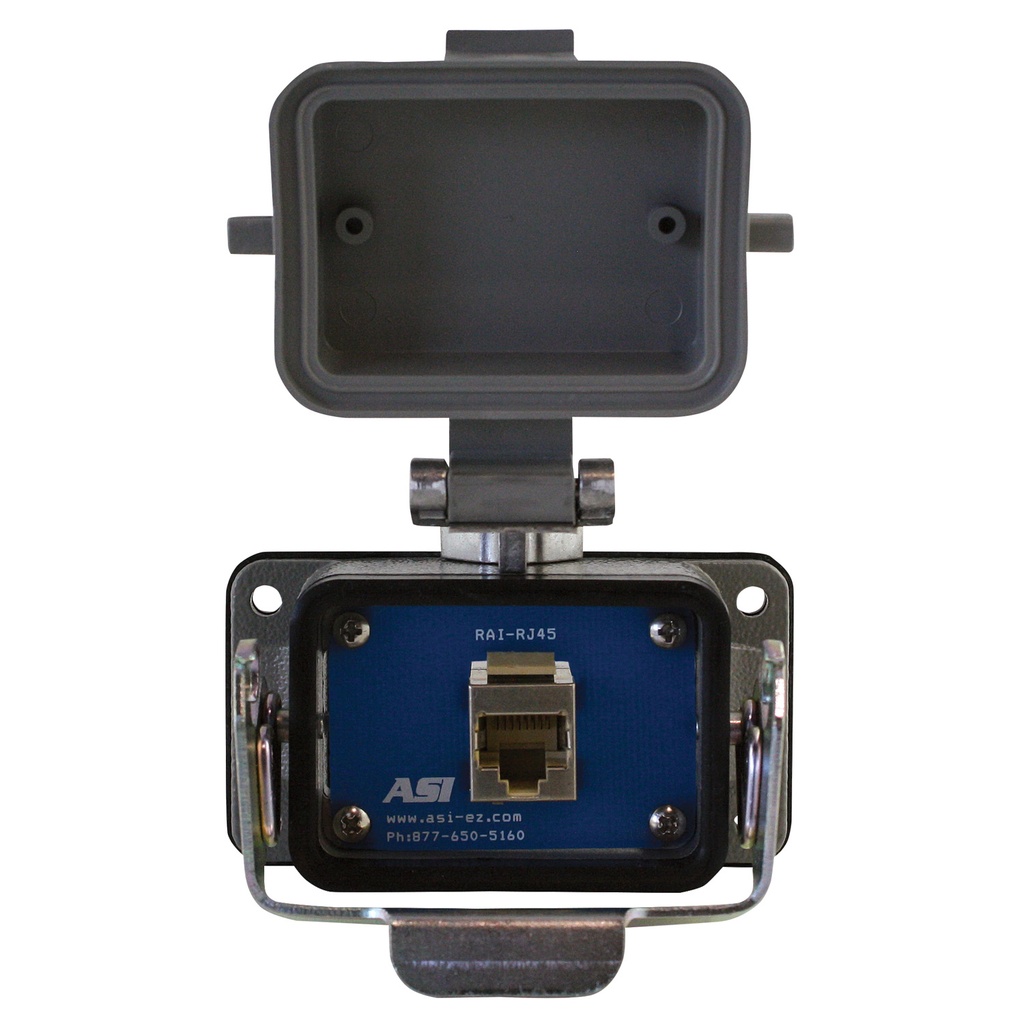

The ASI RAI-RJ45S is a panel interface connector consisting of a shielded thru panel RJ45 connector in a robust aluminum connector housing with a locking cover. It is used in applications where you need to supply access to an Ethernet RJ45 connector on a piece of equipment without having to open the door and enter the panel. The remote access interface or panel interface connector with a shielded industrial Ethernet RJ45 connector mounts with 4 screws in a cut-out made on the side of a panel. Once mounted, there is a protected gateway between the inside and outside of the panel. The housing has a gasket so that the mounting to the enclosure wall is sealed and when the locking cover is closed a protection level of NEMA 4, 4X or IP65 is achieved. The internal connections to the RJ45 panel interface connector are easy with a cable equipped with a male shielded RJ45 connector. The range of options for ASI Panel Interface Connectors include AC receptacles or outlets, circuit breakers and connectors such as RJ or Ethernet connections, and D-subminiature. RAI-RJ45S is a panel interface connector for through panel industrial Ethernet connections with one shielded RJ45 connector to the outside world and one internally to the panel.
