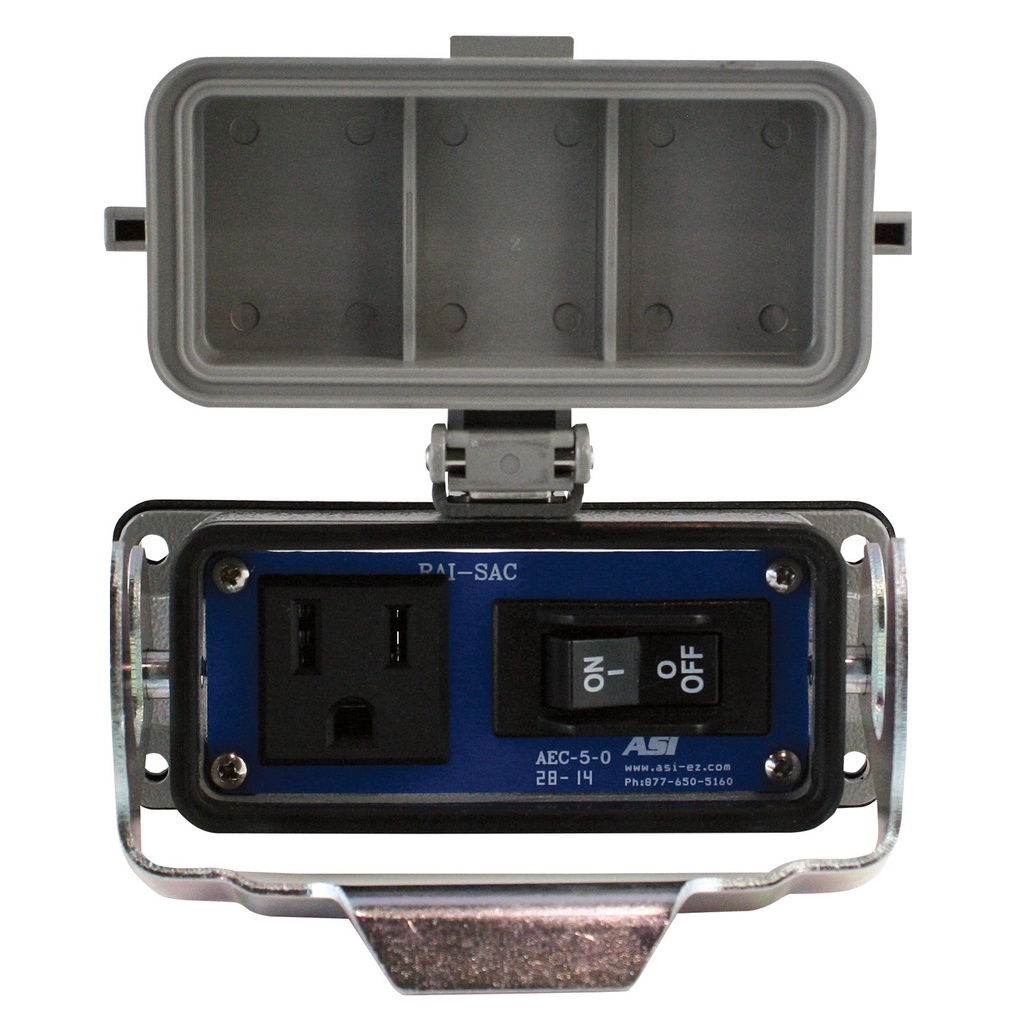

Panel Interface Connector With A 3A Breaker And A 120V Single AC Receptacle, RAI-SAC-102-B
The ASI RAI-SAC-102-B is a panel interface connector or robust through panel interface consisting of a 3A circuit breaker and a single 120V AC receptacle mounted in an aluminum connector housing witch a locking cover, making this a waterproof interface. The circuit breaker is rated at 3 amp at 250 Vac circuit breaker. Whether it is a tripped circuit or for manual operation, you only have to open the locking cover of the panel interface connector mounted on the exterior of the panel in order to access the circuit breaker. The remote access interface or panel interface connector mounts with 4 screws in a cut-out made on the side of a panel. Once mounted, there is a protected gateway between the inside and outside of the panel. The housing is gasketed so that the mounting to the enclosure wall is sealed and when the locking cover is closed and a protection level of NEMA 4, 4X or IP65 is achieved. The internal connections to the remote access interface or panel interface connector are easy to wire after installation. The range of options for ASI Panel Interface Connectors include AC receptacles or outlets, circuit breakers and connectors such as RJ or Ethernet connections, and D-subminiature. RAI-SAC-102-B is a panel interface connector with 120V single receptacle and a 3 amp circuit breaker.
