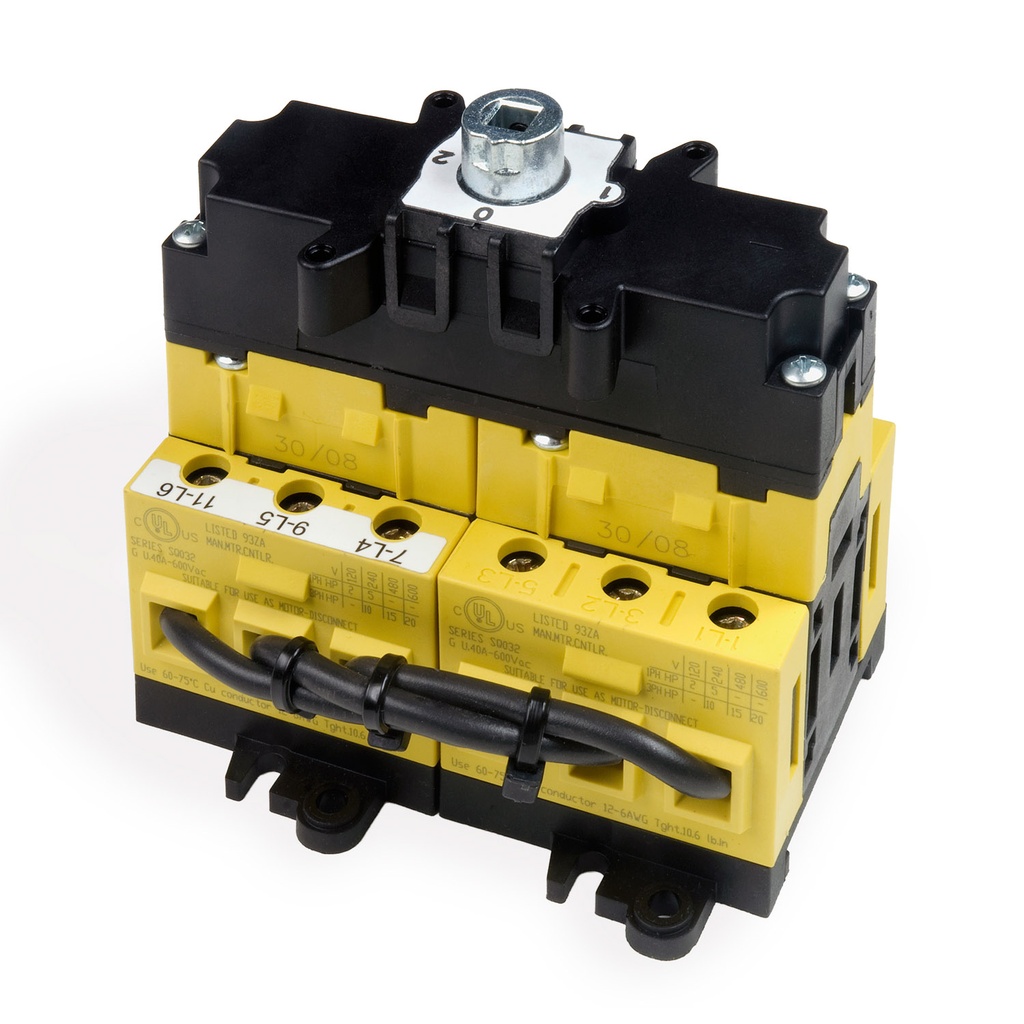

Rotary Disconnect Switch, Suitable as Motor Disconnect Switch, Panel Mount, 30 Amp, 6 Pole, UL508 Listed

The ASI SQ025006B is a 30 Amp, 6 pole rotary disconnect switch for door or thru panel mounting. It is UL508 Listed suitable as a motor disconnect switch up to 15 horsepower. Reliable opening and closing of power circuits is accomplished due to the double break slow opening contacts. Auxiliary contacts are optional accessories for this 30A rotary disconnect switch. The easy to wire screw clamp wire terminations on this 30A 2 position rotary disconnect switch are rated for 12 to 8 AWG wire and optional terminal insulators are available. This robust nonfusible 30 amp rotary disconnect switch has a UL508 general use rating of 600Vac, 32 amps.
