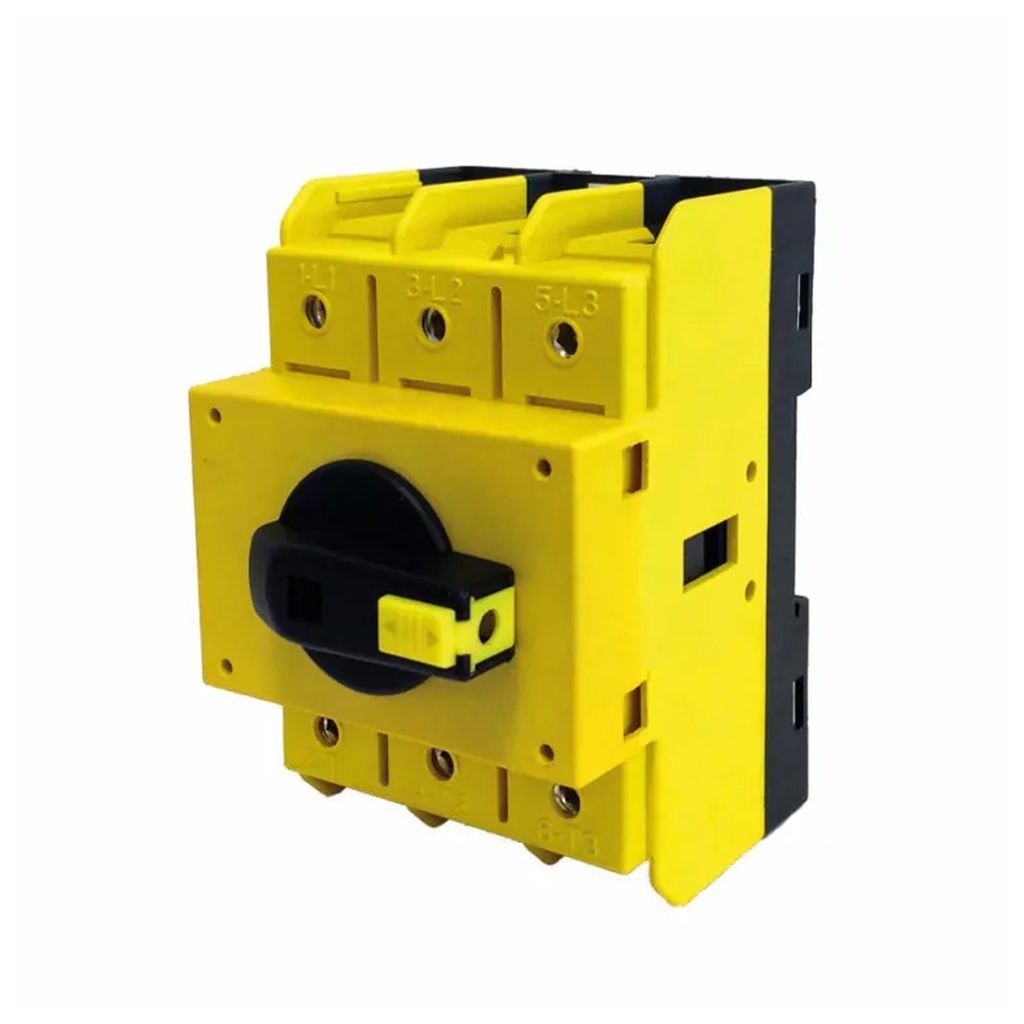

160 Amp Rotary Disconnect Switch, 3 Pole, UL, Non-Fused, Lockable

SKU: SQN160003B

The ASI SQN160003B is a 3 pole panel mount rotary disconnect switch, non-fused, UL508 rated at 160 Amp at 600 Vac and accepts 10 to 2 AWG. This nonfused rotary disconnect switch is suitable as a motor disconnect switch up to 60 horsepower with 3 phase motors. An additional 4th pole or auxiliary contact may be added to this 150 amp panel mount disconnect switch. This motor disconnect switch has two positions for ON and OFF control, and with a locking handle this rotary disconnect switch can be used for lockout/tagout applications. The body of this panel mount disconnect switch is ventilated to optimize heat dissipation. Accessories and handles for this non fused rotary disconnect switch are sold separately.

Call for Availability

143.32 143.32 USD 143.32
