DIN Rail Relay Module | SPDT Interposing Relay Interface | 115VAC/DC Coil | 6A 250VAC Output | UL Recognized
Key Specifications:
- Brand: ASI (Automation Systems Interconnect)
- Part Number: X766846 (Type CWRE7-0846)
- Product Type: Pluggable SPDT Terminal Block Relay Interface
- Coil Voltage: 115VAC/DC
- Contact Output Rating: 6A, 250VAC
- Housing Width: Ultra-slim 6mm space-saving profile
- Wire Terminations: Heavy-duty screw clamp connection
- Mounting Type: Standard 35mm DIN Rail
- Approvals: cULus 508 Listed (Certified for USA and Canada)

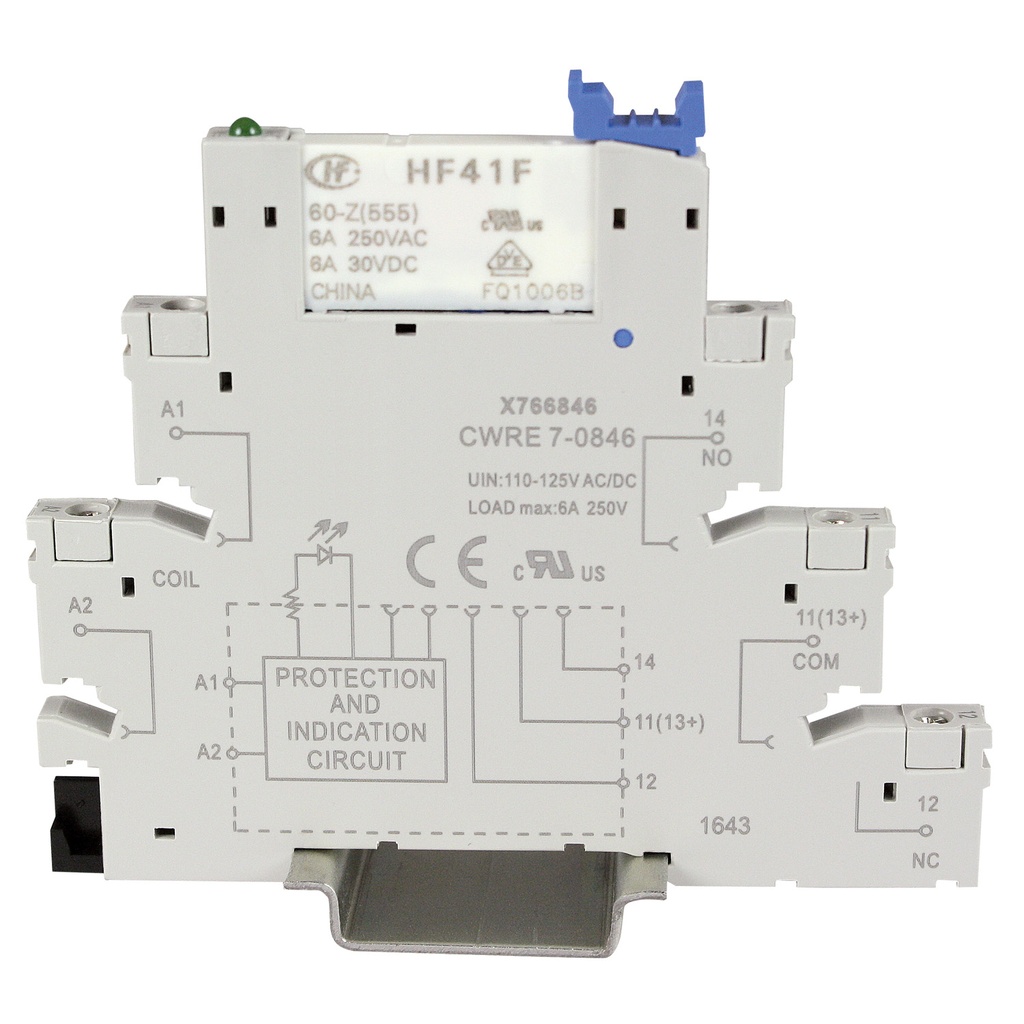

The ASI X766846 (Type CWRE7-0846) is a high-performance, 6mm ultra-slim DIN rail terminal block relay interface featuring a pluggable SPDT relay. Engineered for modern industrial control panels, this space-saving slimline relay is ideal for use as an interposing relay or isolation relay between sensitive PLC control circuits and high-power field loads.
Engineered for Efficiency and Reliability:
- Integrated Visual LED: Provides immediate local status indication for fast troubleshooting.
- Secure Locking Actuator: Holds pluggable relay firmly against vibration with tool-free replacement.
- Printed Wiring Diagram: Schematic printed directly on the side to eliminate wiring errors.
- Time-Saving Busbar System: Compatible with push-in jumpers to rapidly bridge common potentials.
- Identification Ready: Accommodates snap-in markers for clean terminal identification.
Industry Cross-Reference and Interchangeability Guide:
The ASI X766846 is a drop-in functional equivalent and direct replacement for the following major manufacturer part numbers:
- Phoenix Contact: 2966197 (PLC-RSC-120UC/21)
- Allen-Bradley: 700-HLT1U12 (700HLT1U12)
- Finder: 38.51.0.125.0060 (385101250060)
- Weidmüller: 1122820000 (TRS 120VACRC 1CO)
- Wago: 857-358
- IDEC: RV8H-S-AD110 (RV8HSAD110)
