12V DIN Rail Power Supply, Split Phase 240V AC Input, 12V or 15V DC Output,

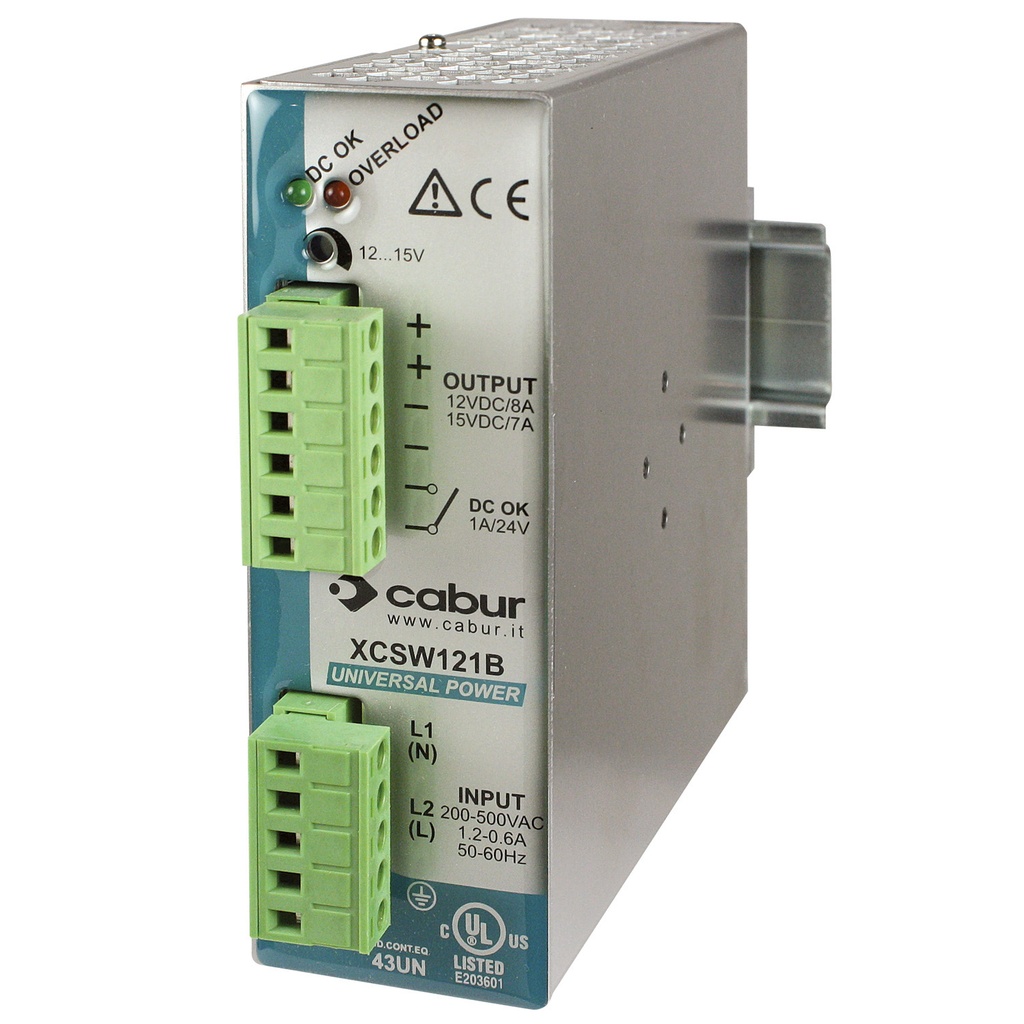

The XCSW121B is a12V DIN rail power supply that operates off of split phase 240V AC and provides an adjustable 12 to 15 Vdc output. Pluggable terminal blocks are used to simplify the wiring to this DIN rail power supply for split phase, 240V AC installations. This split phase 240Vac input DIN rail power supply features an adjustable output from 12V DC at 8 Amps and to 15 V DC at 7 Amps. The wide range Input is from 187 to 550V AC which makes it applicable for use in North America and elsewhere in the world. The high efficiency design of this 240V AC to 12V DC power supply is greater than 86% provides for low dissipated power and a long reliable life. It is cULus508 Listed and has features such as LED status indication, short circuit, over temperature, input and output overvoltage protection.

Call for Availability

262.31 262.31 USD 262.31


Not Available For Sale
