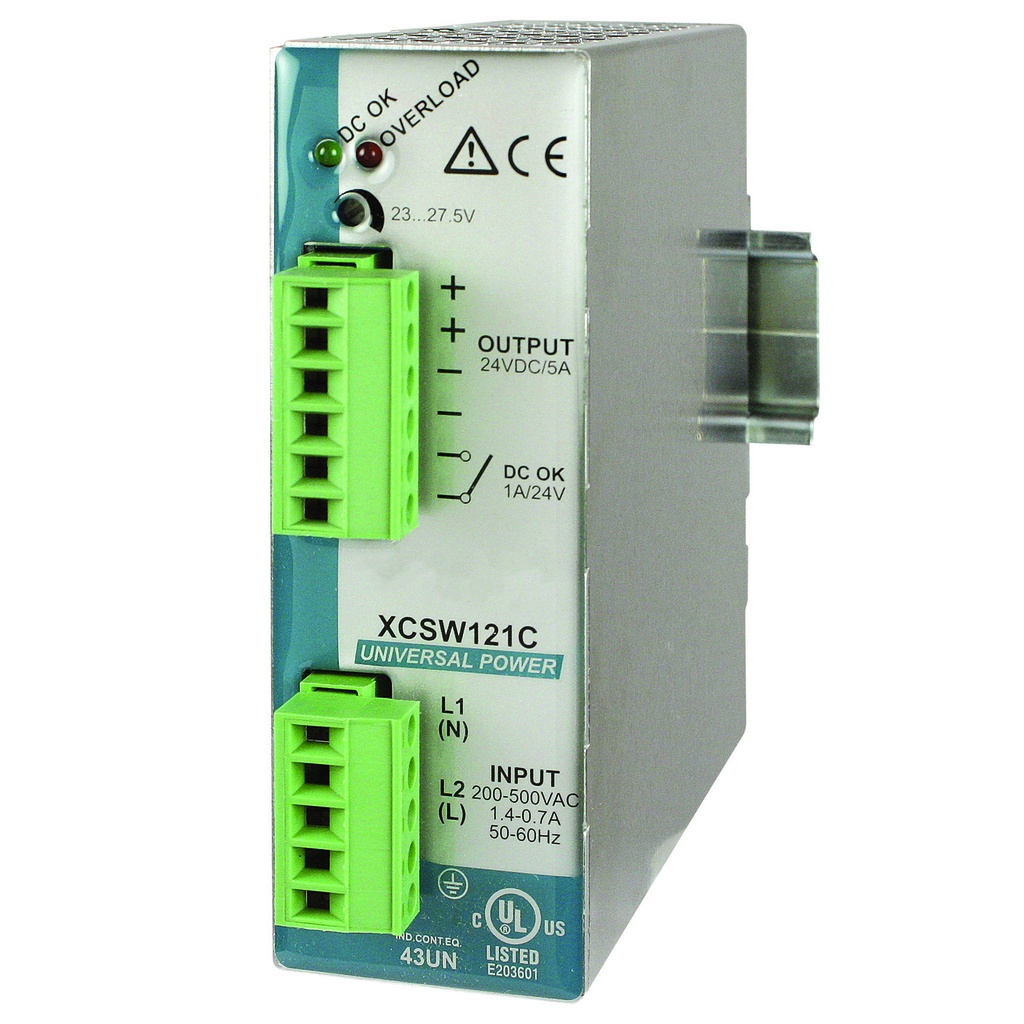

The XCSW121C is a 24V DIN rail power supply that operates off of split phase 240V AC and provides an adjustable 24 V DC output. Pluggable terminal blocks are used to simplify the wiring to this DIN rail power supply for split phase, 240Vac installations. This split phase 240V AC input DIN rail power supply features an output of 24V DC at 5 Amps. The wide range Input is from 187 to 580V AC which makes it applicable for use in North America and elsewhere in the world. The high efficiency design of this 240V AC to 24V DC power supply is greater than 86% provides for low dissipated power and a long reliable life. This 240V AC to 24V DC DIN rail power supply is cULus508 Listed and has features such as LED status indication, short circuit, over temperature, input and output overvoltage protection.
In Stock (4)
Specifications
Input Voltage
240V AC
Output Voltage
24V DC
Output Current
1-5 Amps
