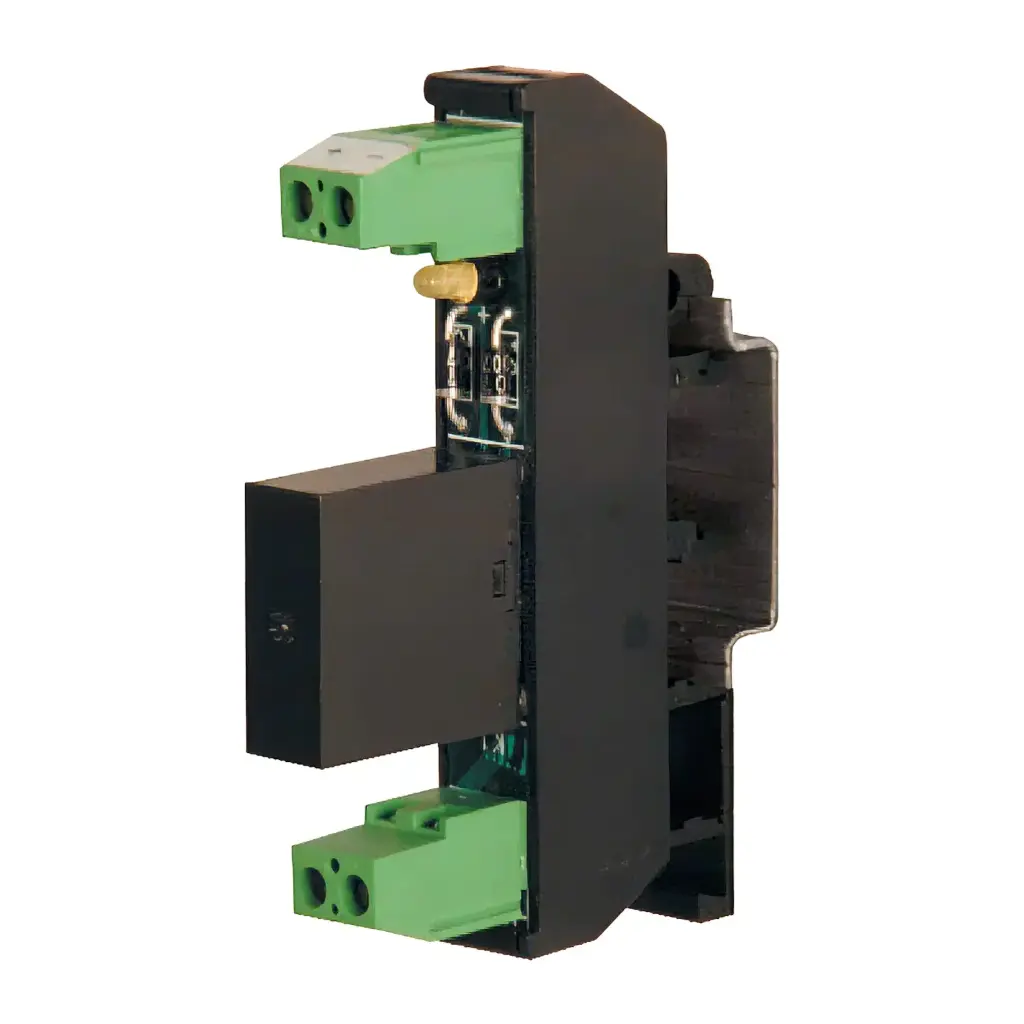

Electromechanical Fixed Relay 24DC 1NO SPST 5A LED
SKU: XRFA024D

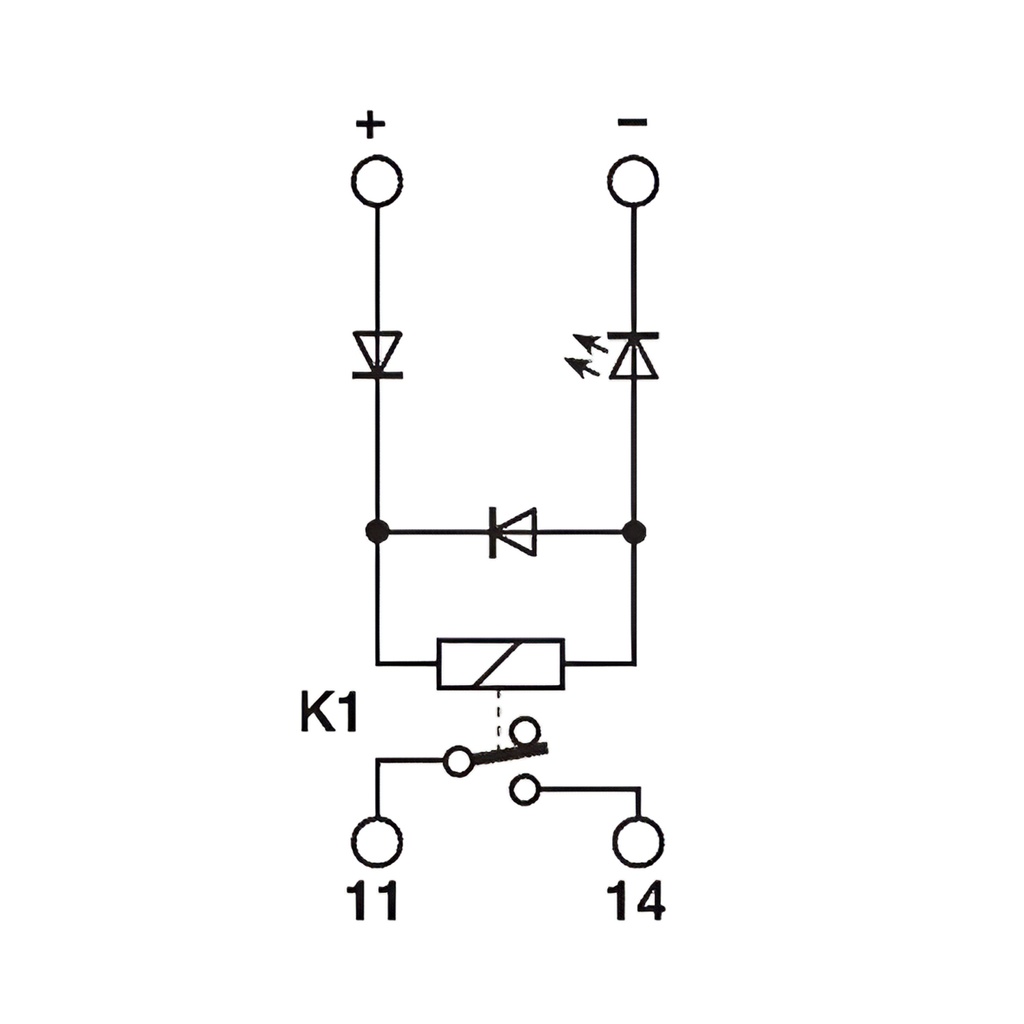

The XRFA024D is a 24 V DC electromechanical interface relay with a single SPST normally open contact. It is designed for screw-terminal wiring and DIN-rail mounting, with free-wheel diode and reverse-polarity protection. The relay is non-pluggable and includes an LED input status indicator.
Key features
🔹 24 V DC nominal input; 18.4–24 V DC operating range
🔹 Single SPST normally open contact (Form A)
🔹 5 A nominal current, 10 A continuous current
🔹 Screw terminals for input and output connections
🔹 Free-wheel diode and reverse-polarity protection
🔹 LED input status indication
🔹 DIN-rail mounting; 12 × 77 × 52 mm
🔹 Operating temperature: −20 to +70 °C
Call for Availability
