Yellow Illuminated 40mm Mushroom Push Button, Latched, Normal Stopping

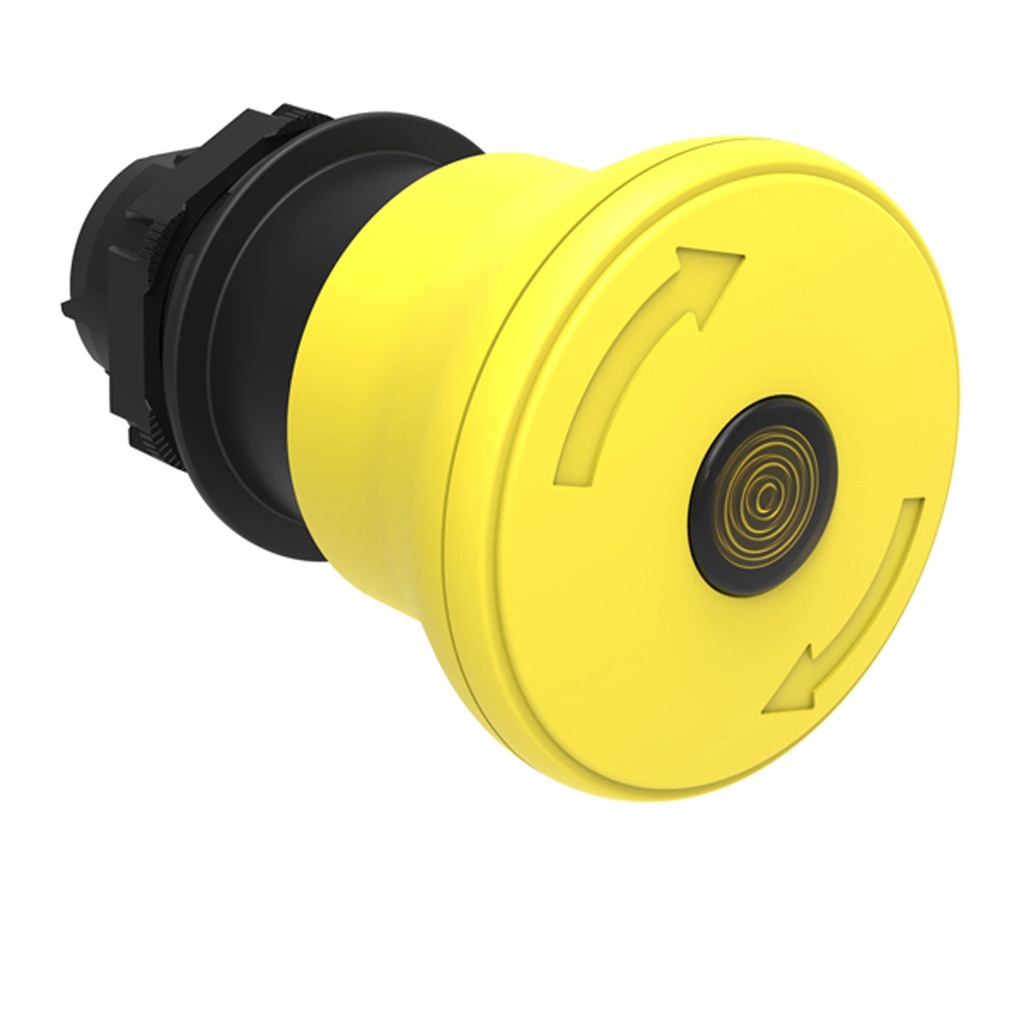

ASI LPCBL6645 is an illuminated push button with plastic 40mm yellow mushroom push button switch, 22mm base, and latched, turn-to-release return. It provides temporary normal stopping. It uses the LPXAU120 plastic mounting adapter and contact blocks which are sold separately. The push button snaps onto the mounting adapter through a 22mm diameter hole. The contact blocks then snap onto the mounting adapter. For these momentary spring return push buttons up to 9 contacts may be used. Available contact blocks include normally open, normally closed, early make and late brake. NO and NC terminations offer screw clamp, spring clamp and faston. Early make and late brake are only available with screw clamp terminations. This stop button provides temporary interruption to a process when pressed. Because of its spring return operation, once it is released the process will resume. The mushroom push button has a 300,000 mechanical life. It provides IEC/EN protection of IP66, IP67 and IP69K and UL rated at Type 1, 2, 3R, 4, 4X, 12 and 12K. LPCBL6645 is sold in quantities of 1.

Call for Availability

83.31 83.31 USD 83.31


Not Available For Sale

  • Color
  • Color

This combination does not exist.

Addtional Resources:


Color Yellow, Yellow
