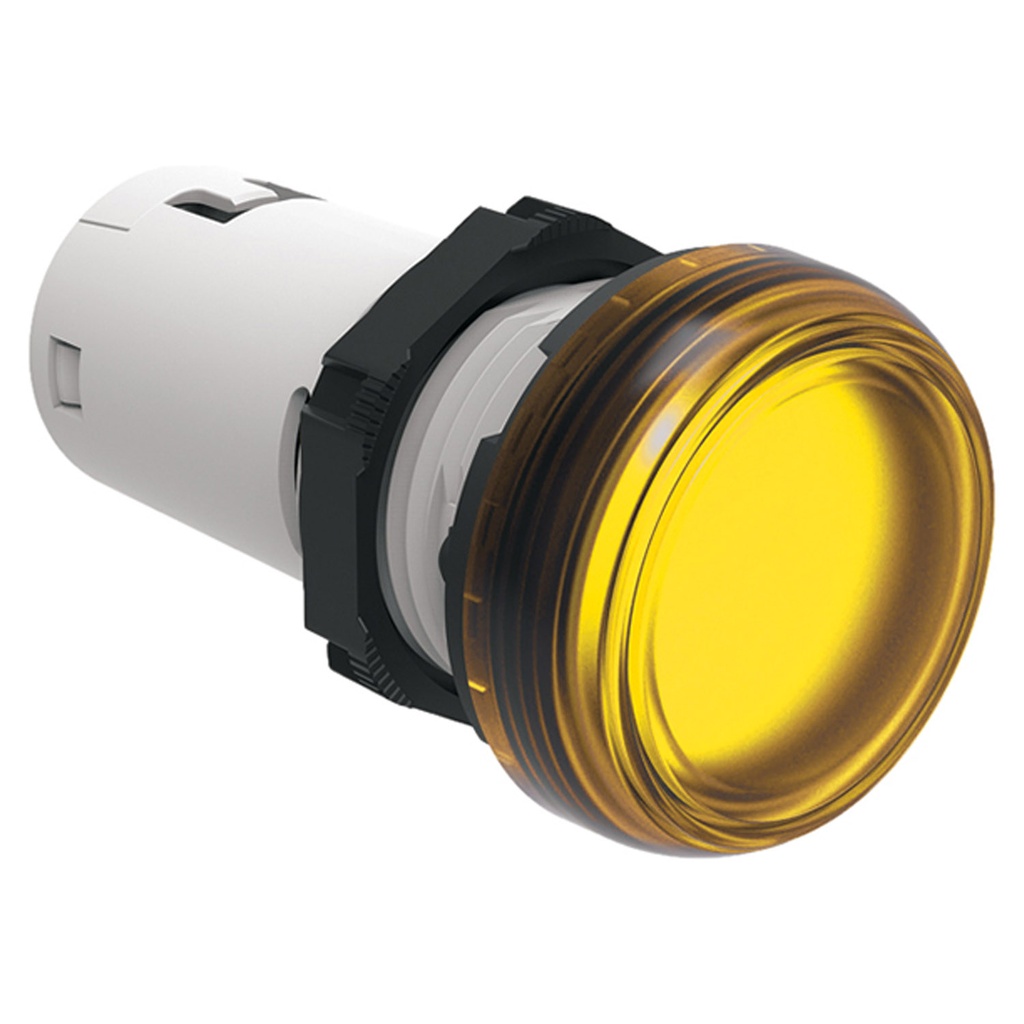

12v LED Panel Light, Yellow, 22mm, UL, LPMLA5

https://www.sourceasi.com/web/image/product.template/8429/image_1920?unique=fbccb16
SKU: LPMLA5

ASI LPMLA5 is a yellow 12v LED Panel Light indicator UL rated at 12Vac/dc with a nominal frequency of 50-60Hz. This panel mount indicator light has an integrated LED, is made from polyamide and polycarbonate materials. It mounts through a 22 mm hole with a threaded fixing ring (included). LPMLA5 has an electrical life of > 30,000 hours, current consumption of ≤20mA, and requires 0.8Nm tightening torque. Wiring access is side entry and there are screw terminations, 2 input and 1 output for #16 AWG. LPMLA5 is sold in packages of 1. cULus, EAC, CCC Pending. IP66, IP67, IP69K on front and IP20 at rear, UL Type 1, 2, 3R, 4, 4x,12, 12K on front.

Call for Availability

14.08 14.08 USD 14.08

14.08

Not Available For Sale

/EACH

    This combination does not exist.

    Addtional Resources:


    How to Create a Custom Station

    Choose an Enclosure

    Start by choosing an Enclosure manufactured by Lovato.

    SKU: starting with GCS or YCS

    Choose Buttons

    Check out the Lovato Compatibility sheet to find buttons that go with your chosen enclosure.

    Fill out Custom Form

    Use ASI's Custom Pendant Station order form to create your ideal Control Station.
