Temporary Run Station | 5-Button Pendant Station With Tubular Key Switch

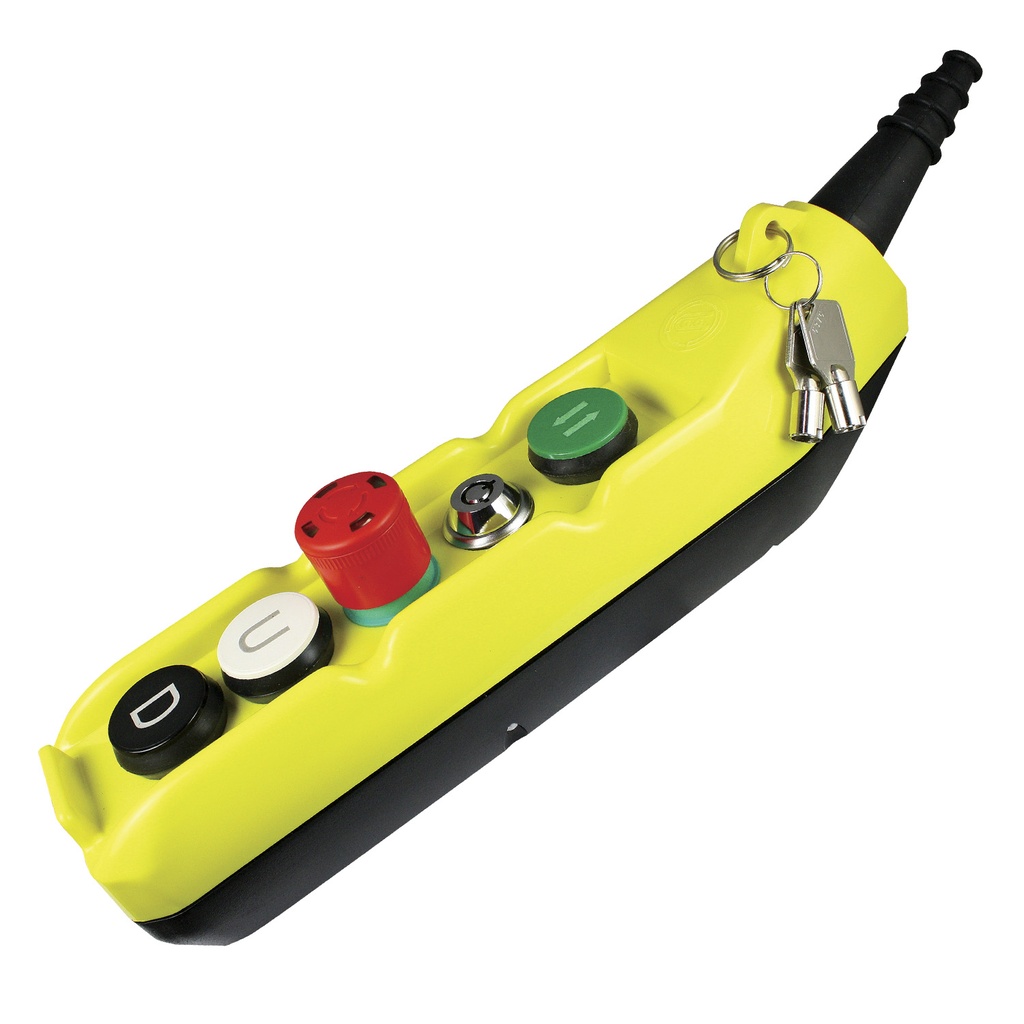

The ASI PL05MT-TUBKEY is a temporary run station used for elevator control applications. It has 5 positions including a tubular key switch, a 40mm emergency stop push button switch with visual indication, one green push button switch labeled with up and down arrows, one white push button labeled U and one black push button labeled D. The tubular key switch must be enabled by the elevator technician for the temporary run station to operate. There are two tubular keys attached to a ring at the top of the station for convenient access. It has one normally closed contact for the estop and the other buttons use normally open contacts. The contacts for this five-button temporary run station are rated at 16A and screw clamp wire terminations for easy wiring. The robust housing is made of a double insulated thermoplastic housing that is shockproof, heat resistant and offers an IP65, NEMA 4X rating. The laser engraved push button switches along with the slender housing make for a user-friendly temporary run station.
