40 Amp Enclosed Motor Disconnect Switch, 3 Pole, 2 To 20 HP, IP65 NEMA 4

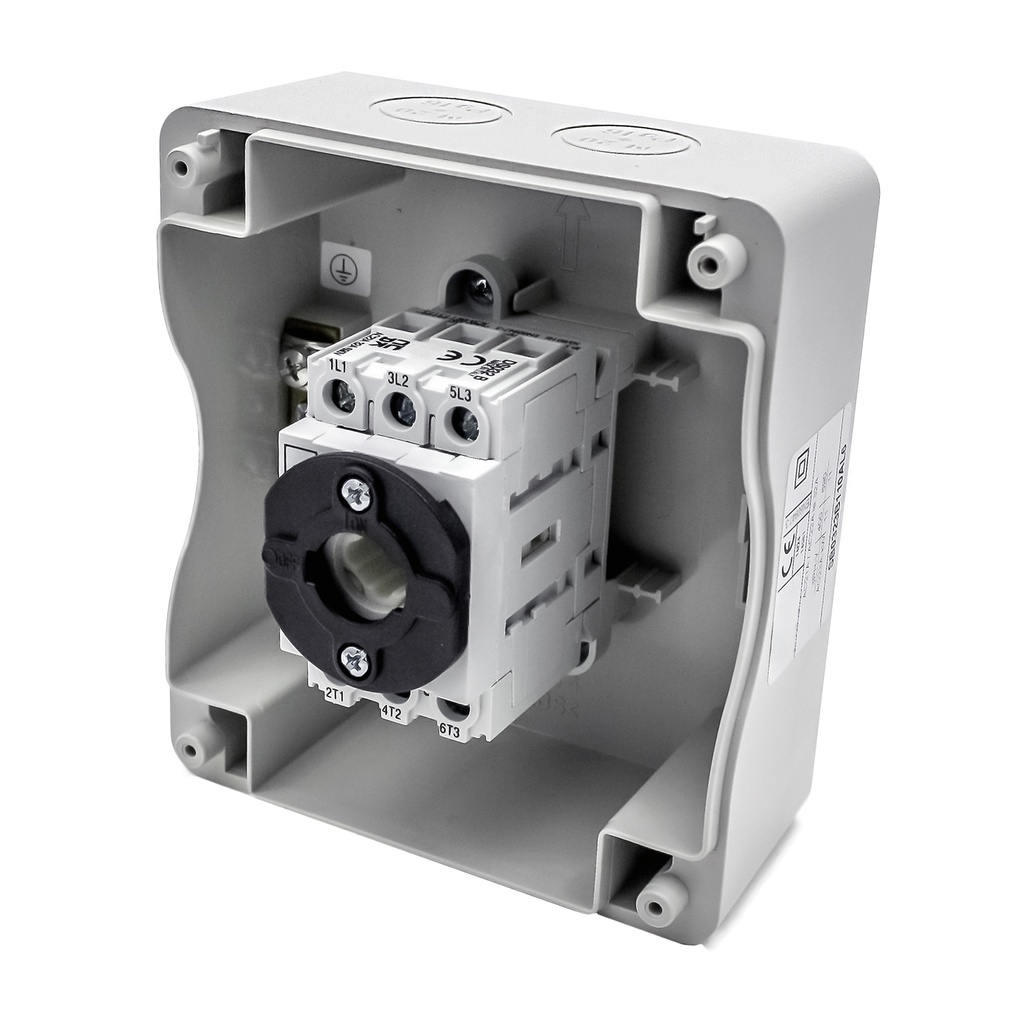

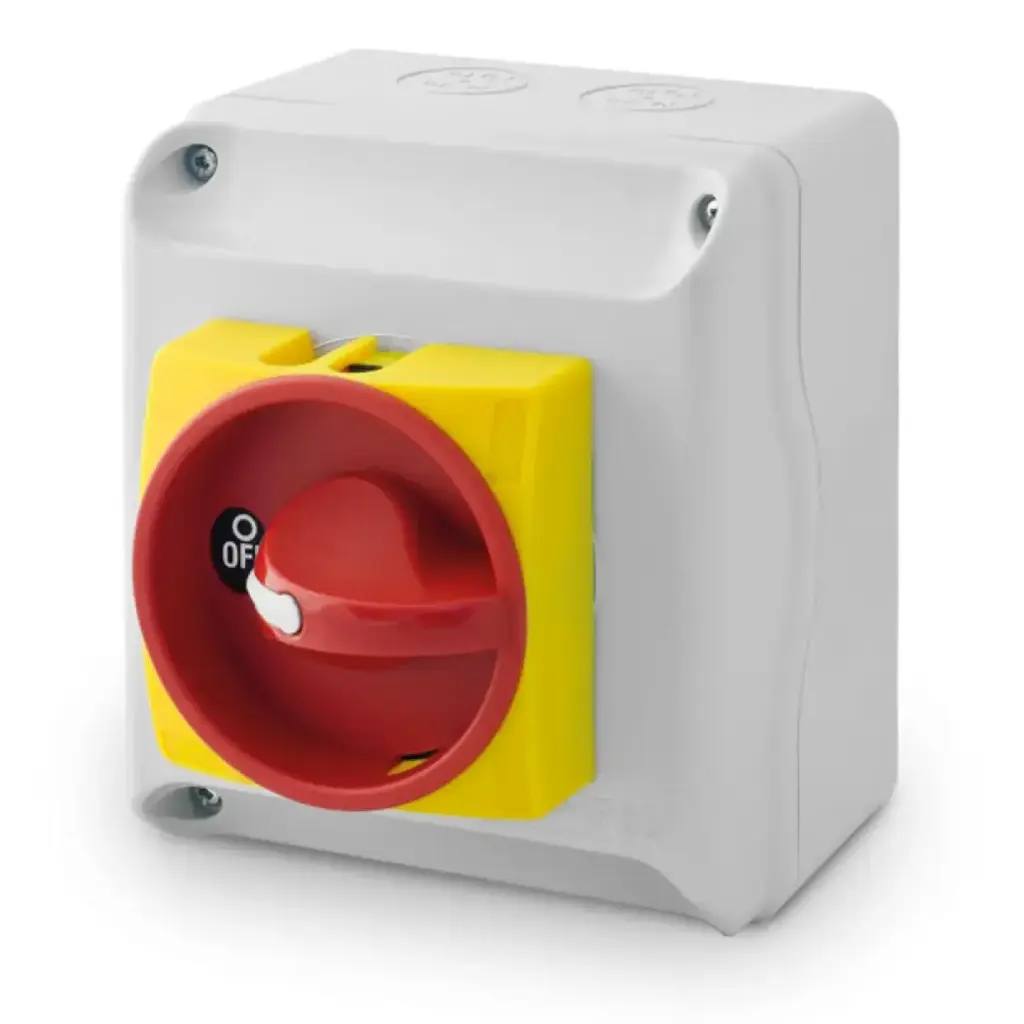

The ASI SB0404B110AL6 is an enclosed motor disconnect switch or rotary disconnect switch with 3 poles and can be used with single phase and three phase motors. This enclosed motor disconnect switch is UL508 Listed with ratings of 600 volts, 40 amps for motors rated from 2 HP to 20 Hp. With a IP65 rating, equivalent to NEMA 4, this enclosed rotary disconnect can be used in outdoor applications which require a weatherproof rotary disconnect switch. The housing of this enclosed motor disconnect switch is black with a yellow cover and the red lockable handle can accept up to 3 locks in the 0 to Off position. The dimensions of this enclosed rotary disconnect switch are 120x100x85 mm. For secure wiring the enclosed motor disconnect switch has PG16 cable gland knockouts.
