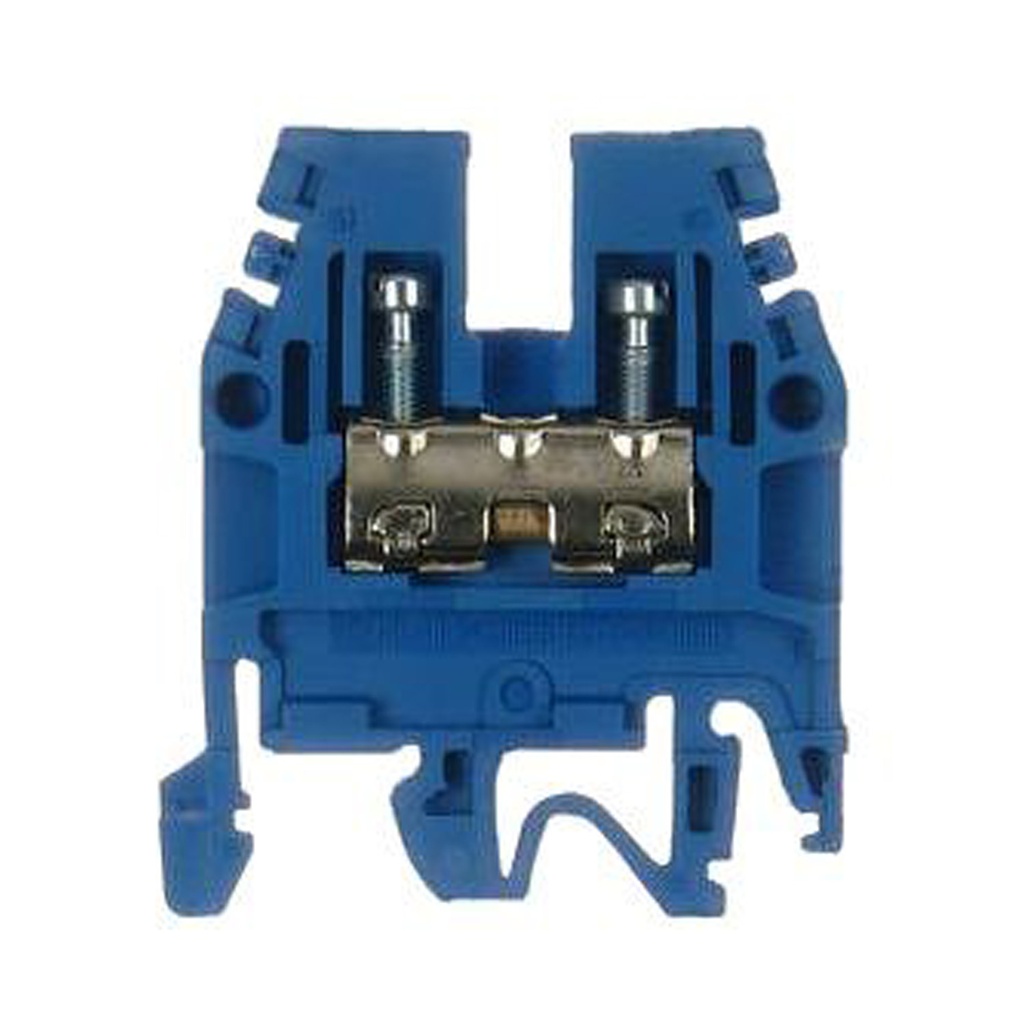

Universal Thermocouple Terminal Block for Type J, K, T, B & E | DIN Rail Mount | 26–14 AWG | 1A, 55V | Screw Terminal | Temperature Sensor Connection | TC510 | ATEX Rated

Designed for use in hazardous locations, the TC510 meets ATEX requirements for safe and reliable operation in demanding industrial applications.

Unlike traditional thermocouple terminal blocks that require specific alloys for each thermocouple type, the TC500 uses a direct conductor overlap design that allows thermocouple and extension wires to connect without introducing additional dissimilar metal junctions.

This enables reliable signal continuity across multiple thermocouple types using a single DIN rail-mounted solution.

Universal Compatibility
The TC500 can be used with multiple thermocouple types, including:
-Type J
-Type K
-Type T
-Type B
-Type E

One terminal block replaces multiple SKUs, simplifying panel design and inventory.

How It Works
Instead of passing the signal through a metal terminal body, the TC500 uses a direct wire-to-wire overlap connection:

Strip approximately 20 mm of insulation
Place the extension lead directly over the thermocouple conductor
Secure using the double screw clamping system

This creates a direct thermoelectric connection, helping preserve signal accuracy.

Key Benefits
-Eliminates compensating metal requirements
-Maintains thermoelectric signal integrity
-Reduces temperature measurement error
-Universal design replaces multiple terminal block types
-Simplifies inventory and procurement
-DIN rail mount for standard control panel installation

Technical Specifications
-Wire Range: 20–14 AWG
-Rating: 15A / 600V (UL)
-Mounting: DIN Rail
-Connection Type: Double screw clamp

Ideal Applications
-Industrial temperature monitoring systems
-PLC and control panel wiring
-Process control instrumentation
-OEM equipment design
-Facilities standardizing thermocouple connections

Why This Design Matters
Traditional thermocouple terminal blocks rely on type-specific compensating metals, requiring separate inventory for each thermocouple type.

The TC500 eliminates this limitation by enabling a direct conductor connection, helping ensure:
-Accurate temperature readings
-Reduced installation complexity
-Lower inventory costs
