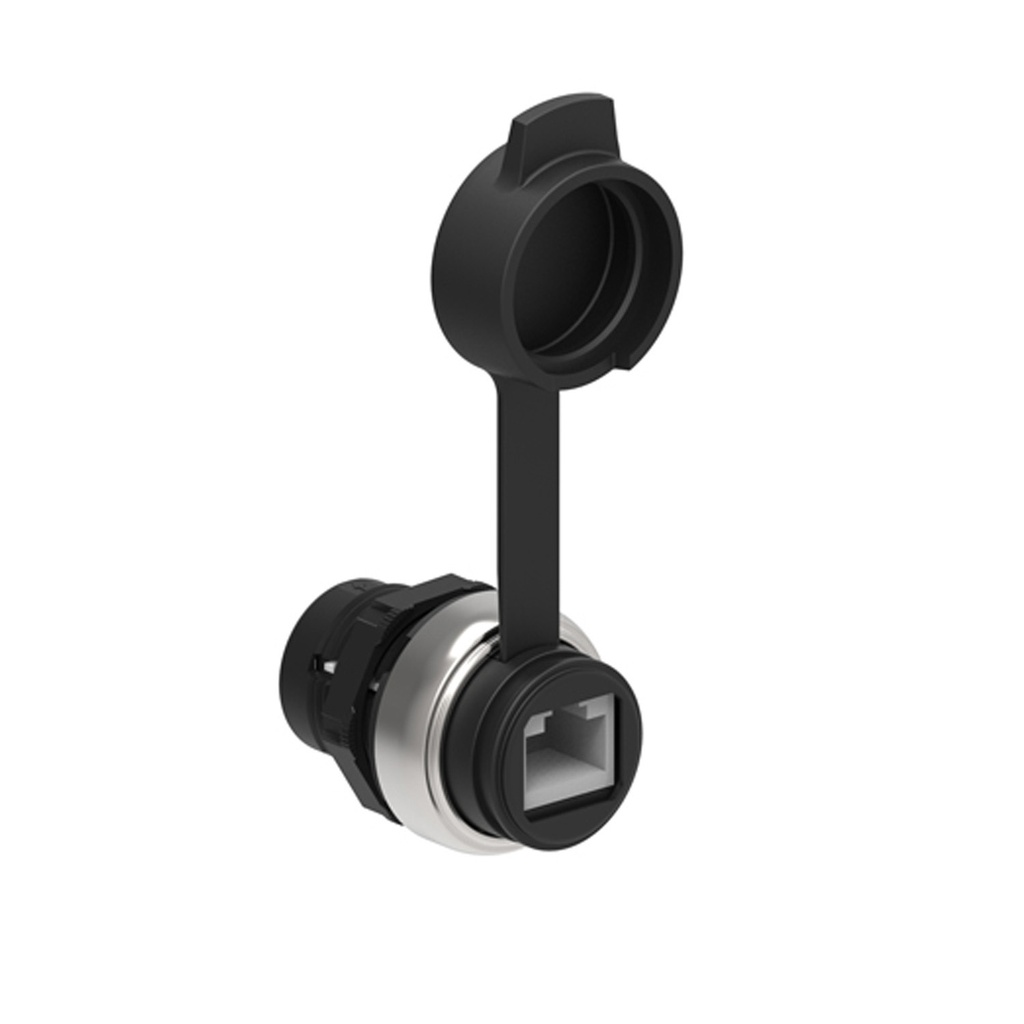

ASI-D100RJ45N Waterproof Cat6 Panel Mount RJ45 Connector

The ASI-D100RJ45N is a heavy-duty, shielded Cat6 RJ45 female-to-female feed-through bulkhead connector engineered for rugged remote interface applications. This panel-mount Ethernet pass-through allows system integrators, engineers, and machine builders to establish high-speed data connections through electrical enclosure walls without opening the cabinet door.

Designed for standard industrial control setups, this premium component features an upgraded platinum-chromed plastic bezel and serves as the official, direct replacement model for discontinued black plastic bulkheads, including the PP2RJ45BL and PP2RK45BL.

Electrical & Data Transmission Characteristics
10GbE Cat6 Performance: Certified for high-speed Cat6 and Cat5e data transmission networks up to 10 Gigabit Ethernet (under IEEE 802.3am-2006 standards) to ensure zero data drops.

Fully Shielded Interface: Features robust internal shielding to protect critical communications from electromagnetic interference (EMI) on crowded automation floors.

Low Contact Resistance: Engineered with a maximum contact resistance of and a high insulation resistance of for absolute signal integrity.

Standard Operational Ratings: Safely handles a maximum current load of 1.5 Amps at a rated insulation voltage of 24V AC/DC.

Mechanical Dimensions & Panel Installation
Universal 22mm Cutout: Fits seamlessly into standard 22.5 mm (0.87") industrial button holes and control panel punchouts.

Secure Rear-Mount Design: Locks tightly into place against panel walls using a rugged, rear-threaded polyamide fixing ring to eliminate loose or rotating ports.

Compact Depth Profile: Measures 44 mm Height x 32 mm Width x 60 mm Depth, making it optimized for shallow junction boxes, automated machinery brackets, and compact HMI enclosures.

Upgraded Chrome Bezel: Built with a platinum-chromed plastic outer finish that provides enhanced frame rigidity while delivering a clean, modern look to your operator panels.

IP Rating & Environmental Protections
IP65 Weatherproof Front Seal: Includes a heavy-duty, integrated rubber protective cap that seals tightly over the front port to stop high-pressure water sprays, dust particles, and oils during machinery washdowns.

Multi-Class NEMA Protection: Fully rated to meet strict UL Type 1, 2, 3R, 4, 4X, 12, and 12K standards for reliable sealing in harsh, corrosive industrial environments.

High Thermal Tolerance: Tested and rated to operate seamlessly in extreme industrial temperatures ranging from -25°C up to +70°C (-13°F to 158°F).
